Measurement of separate electron and positron spectra from 10 to 20 GeV with the geomagnetic field on DAMPE

Electrons are a small ($ \sim $1% [1]) but important component of cosmic rays (CRs). There are two components contributing to the flux of CR electrons: (a) the primary electrons that were accelerated by supernova remnants (SNRs); (b) the secondary particles from the interactions between CR nuclei and the interstellar matter. Generally, CR positrons are produced as secondary particles together with electrons, with a decreasing fraction ($ \Phi(e^+)/ (\Phi(e^+)+\Phi(e^-)) $) as energy increases [2]. Therefore, the positron fraction is an important probe for studying the origin of CR electrons and positrons [3].

However, the theoretical prediction is not consistent with the experimental observations. In the 1990s, the HEAT experiment measured the positron fraction using a balloon-borne payload and provided a predominantly decreasing positron fraction [4]. The authors discovered a small excess at $ \sim $ 7 GeV. More recently, the PAMELA Collaboration has reported an increasing positron fraction above 10 GeV with high precision [5]. The observation was subsequently confirmed by Fermi-LAT [6] and AMS-02 [7]. It is difficult to explain the increasing positron fraction above 10 GeV through secondary particle production, indicating additional sources, including pulsars [8], SNRs [9], and the decay of dark matter [10].

Detector—The Dark Matter Particle Explorer (DAMPE [11], also known as "WuKong'' in China) was launched into a 500-km sun-synchronous orbit on December 17, 2015. From top to bottom, it consists of a plastic scintillator detector (PSD) for charge measurement [12], a silicon-Tungsten tracKer converter (STK) for trajectory measurement and additional charge measurement [13], a bismuth-germanate-oxide imaging calorimeter (BGO) for energy measurement and electron-hadron discrimination [14], and a NeUtron Detector (NUD) for further electron-hadron discrimination [15]. DAMPE achieves an excellent energy resolution ($ \sim $1.5% for electrons and gamma-rays and $ \sim $30% for nuclei) and angular resolution ($ \sim $0.2°) [11], ensuring a good measurement of the energy deposition and the tracking of CR electrons and positrons. Dedicated calibrations of each sub-detector show that the instrument works stably on-orbit [16−19]. Furthermore, the DAMPE detector has excellent e/p discrimination power, which is validated in the measurement of the all-electron spectrum [20]. Although DAMPE does not have an onboard magnet, it can separate CR electrons and positrons using the geomagnetic field. Following the method pioneered by Fermi-LAT, DAMPE exploits the opposite distortion of Earth's shadow caused by the geomagnetic field [6] to distinguish between electrons and positrons.

Monte Carlo simulations—Extensive Monte Carlo (MC) simulations were conducted in the analysis to explore the response of the detector. The MC events were generated using the DAMPE software framework based on the GEANT4 toolkit of version 4.10.5 [21] with the FTFP-BERT physics list. The simulated events were generated with an isotropic source and an $ E^{-1} $ spectrum. During the analysis, the spectra were re-weighted based on the results reported by AMS-02 for electrons and positrons and to $ E^{-2.7} $ for protons. The energy ranges for MC electrons/positrons and protons are [5 GeV, 30 GeV] and [1 GeV, 100 GeV], respectively.

The Earth's magnetic field (geomagnetic field) extends from its interior into space. The magnitude of the geomagnetic field at the surface of the Earth ranges from 25 μT to 65 μT [22], and significantly affects the distributions of CRs in near-Earth space. In particular, positively charged particles with low energy from the east are suppressed compared with those from the west and vice versa [23−25]. This effect, also known as the east-west effect, makes it possible for DAMPE to separate CR electrons and positrons. The black shaded band in Fig. 1(a) shows the angular distribution of CRs blocked by the Earth without the geomagnetic field. Furthermore, the blocked distributions of CR electrons and positrons are distorted by the geomagnetic field to the opposite direction as shown in Fig. 1(b). Electron trajectories falling within the angular distribution represented by the blue shaded band are blocked by the Earth (“positron-only” region), whereas in the case of the red shaded band, the positron trajectories are blocked (“electron-only” region).

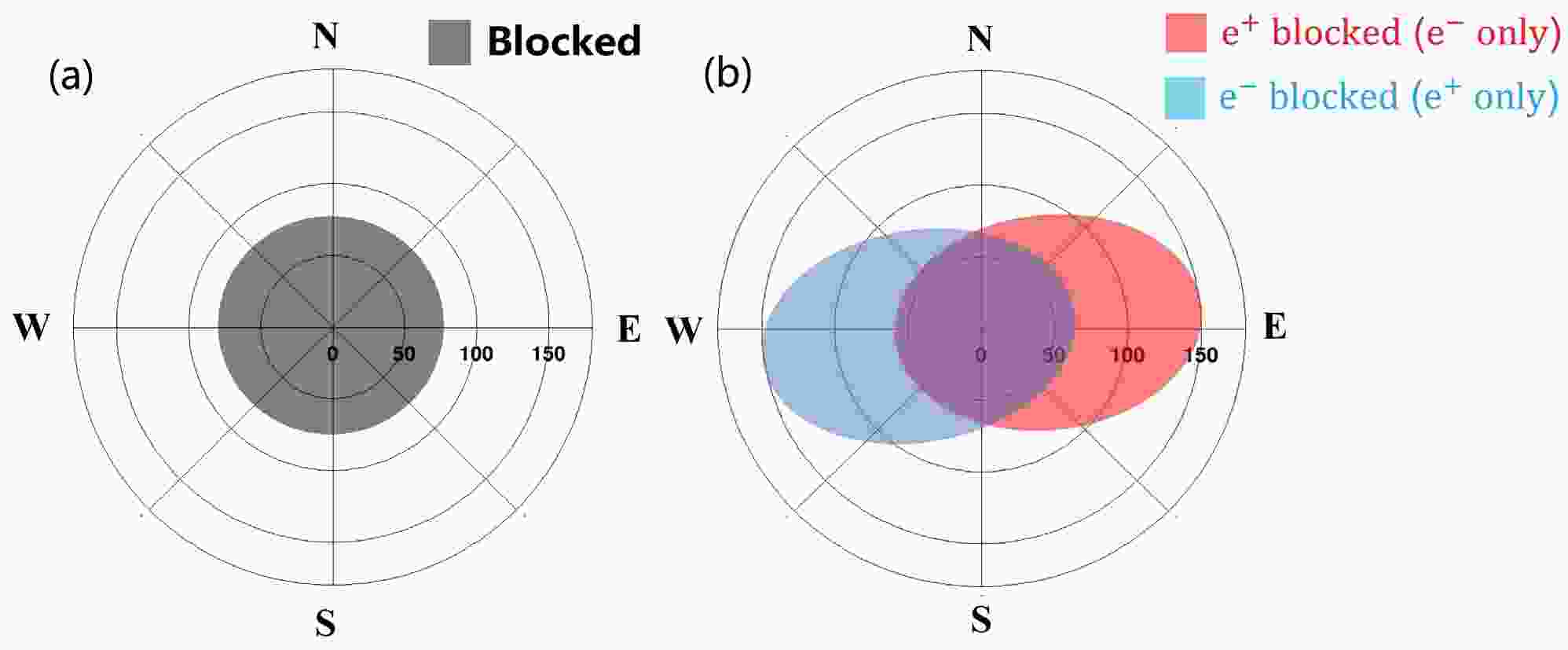

Figure 1.  (color online) Polar axis indicating the nadir angle (i.e., nadir angle = 0° denotes that CR particles travel from the Earth center toward the satellite). (a) The black shaded region indicates the distribution of CRs blocked by the Earth without a geomagnetic field. (b) The angular distributions for the blocked CR electrons and positrons are distorted to the opposite direction by the geomagnetic field; the angular distribution indicated by the blue shaded band is the electron-blocked region (''positron-only'' region), whereas the red shaded band is the positron-blocked region (''electron-only'' region).

To obtain the exact size and shape of the “electron-only” and ''positron-only'' regions, a high-precision geomagnetic field model (International Geomagnetic Reference Field, IGRF) [26] was adopted to mimic the behavior of CR electrons and positrons. The geomagnetic field changes over time, and the IGRF model is updated every five years by the International Association of Geomagnetism and Aeronomy (IAGA). The results presented in this study are based on the 12th generation of the model (IGRF-12, 2015 epoch). As the method used in the report of Dai [27], the tracer code developed by Smart and Shea [28] was utilized to reconstruct the trajectories of MC electrons and positrons in the geomagnetic field (back-tracing). MC events with allowed trajectories were labeled as ''true'', whereas MC events with forbidden trajectories were labeled as ''false''. The sizes of the “electron-only” and ''positron-only'' regions are positively correlated with the geomagnetic cutoff rigidity. The McIlwain coordinates, introduced by Carl E. McIlwain, are a set of coordinates for mapping the distribution of magnetically trapped particles [29]. The geomagnetic cutoff rigidity decreases as the McIlwain-L parameter increases. Therefore, MC events were only back-traced in the region with a low McIlwain-L parameter, and the region with a McIlwain-L parameter between 1.0 and 1.14 was selected. CR events were required to fall within the ''electron-only'' and ''positron-only'' regions (region selection). Furthermore, the signal regions obtained using the IGRF-12 model were applied to flight data after 2020 owing to the minimal variation over time, which is validated in the section on systematic uncertainty.

Event selection—We used 108 months of DAMPE data from January 1, 2016 to December 31, 2024 in this analysis. The limitation of DAMPE's orientation (toward space) makes the ''electron-only'' and ''positron-only'' regions outside the effective field of view of the detector at energies exceeding 20 GeV for which we cannot extend the measurements to higher energy like Fermi-LAT with data collected in special modes [6]. CR events were excluded when the detector traveled through the South Atlantic Anomaly (SAA) region. In addition, CR events collected in the region with the McIlwain-L parameter between 1.0 and 1.14 were selected. The corresponding collection time accounted for approximately 14.2% of the total flight time. The total live time was approximately$ 3.06\times10^7 $ s ($ \sim $75% of the collection time) after subtracting the SAA passage time ($ \sim $5%), instrumental dead time ($ \sim $18.44%), and on-orbit calibration time ($ \sim $1.56%). The detailed selections are presented as follows:

• Pre-selection. The events are required to satisfy the high energy trigger (HET) in this study. The HET mode stipulates that the energy deposition in the first three layers of the BGO be higher than 10 times the proton minimum ionizing particle (MIP) energy (approximately 23 MeV) and that in the fourth layer be higher than 2.4 times the proton MIP energy [30]. To enhance the effective field of view of the detector, we require that the BGO track (based on the center of energy deposition in each BGO layer) pass through the first four layers of the BGO instead of all 14 layers. Additionally, we require that the number of BGO bars fired (threshold = 20 MeV) be less than an upper limit ($ N_{\rm limit} = 18.17+1.84\times E-0.0192\times E^2 $) and that the energy deposition in the last layer of the BGO ($ F_{\rm last} $) be less than 1% of the total energy.

• STK track selection. The number of hit points in the STK of the track is required to be not less than 3. The track with the maximum track quality (TQ) value is selected as the candidate track. The TQ value is defined by Eq. (1) [31]:

where $ E_r $ is the ratio of the energy deposited within a 5 mm cylinder around a candidate track to the total energy deposition in the STK, $ D_{\rm sum} $ is the sum of the distances from the extrapolating STK-track to the centers of energy deposition of the first four BGO-layers, and $ N_{tr} $ is the number of hit points. Furthermore, we require a match between the STK track and the BGO track, stipulating that the average projected distances between the energy center in the first four layers of BGO and the candidate STK track be less than 25 mm. To ensure a good charge reconstruction of CRs, the selected track is required to pass the bar with maximum energy deposition on each PSD layer.

• Charge selection. To eliminate heavy CR nuclei (Z $ \ge $ 2), the PSD charge based on Eq. (2) is required to be constrained within the range of 0 to 1.8.

where $ Q_{l1} $ and $ Q_{l2} $ are the charges reconstructed by the first and second layers of PSD, respectively.

Particle identification—The residual protons are excluded by the shower difference between the electrons/positrons and protons. We calculated the shower spread and shower depth, expressed by the transverse ($ RMS_r $) and longitudinal ($ RMS_l $) energy-weighted root-mean-square values of the hit positions in the BGO, respectively. $ RMS_r $ and $ RMS_l $ are calculated as

where $ x_{ij} $ and $ E_{ij} $ are the coordinates and deposited energy of the j-th bar in the i-th layer, respectively, $ x_{c,i} $ is the coordinate of the shower center of the i-th layer, $ d_{ij} $ represents the coordinates of the projection point of the j-th bar in the i-th layer on the BGO track, and $ d_c $ is the energy-weighted center of all the projection points. $ \ln (RMS_l/\text{mm}) $ is required to be less than 4.5, whereas $ \ln (RMS_r/\text{mm}) $ is required to be constrained within the range of [2.7, 3.1]. Fig. 2 shows the $ \ln (RMS_r/\text{mm}) $ distributions of flight data and MC simulations for two selected energy ranges, 11.5-13.2 GeV and 15.1-17.3 GeV, respectively. The vertical dashed lines indicate the selection window of [2.7, 3.1].

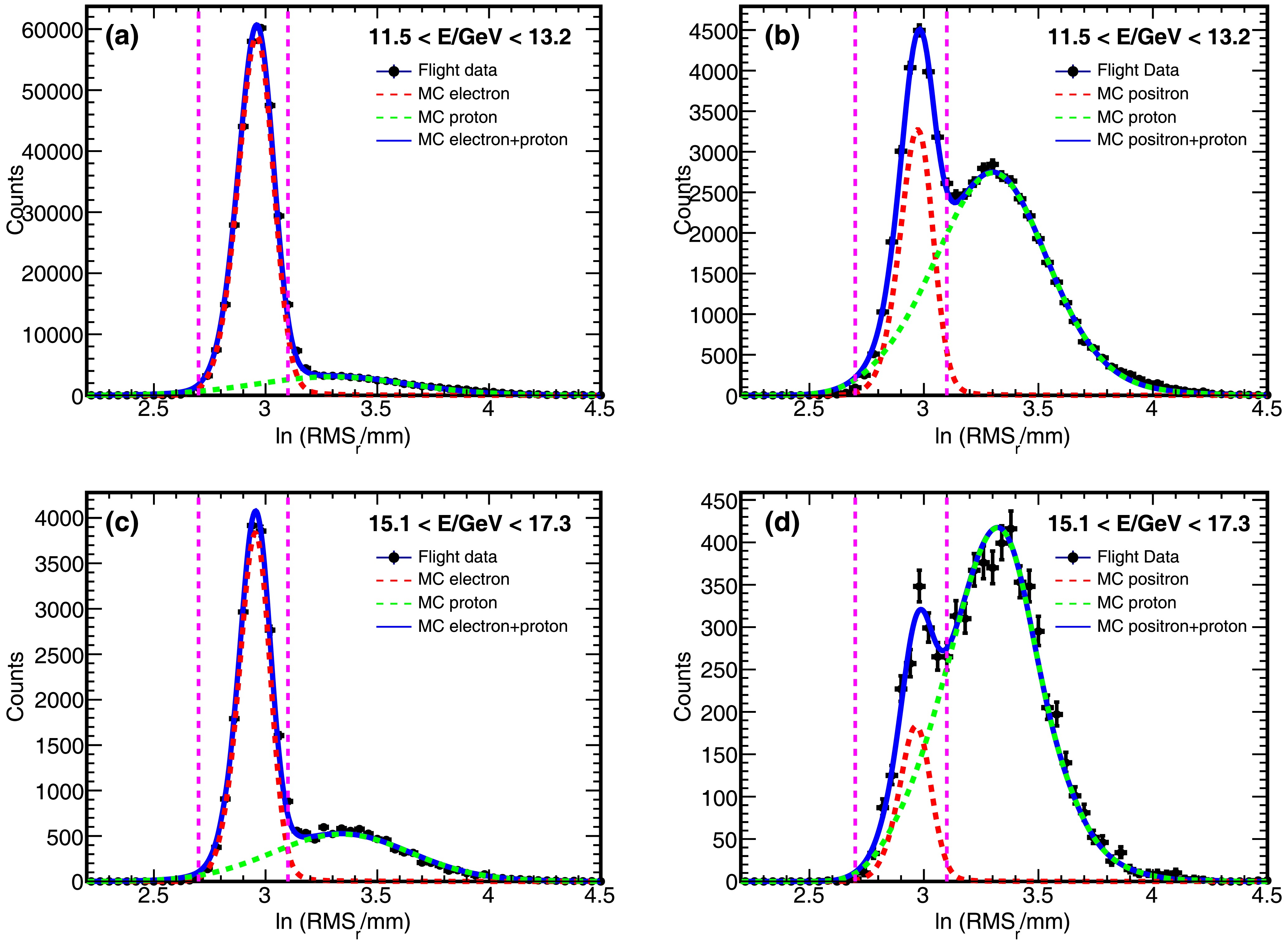

Figure 2.  (color online) Distributions of $ \ln (RMS_r/\text{mm}) $ for events with the energy ranges 11.5−13.2 GeV (a,b) and 15.1−17.3 GeV (c,d). The flight data are shown as black points. The probability density functions represent the distributions of the best-fit electron (a,c)/positron(b,d) MC (red), proton MC (green), and electron/positron + proton MC (blue). The vertical dashed lines indicate the $ \ln (RMS_r/\text{mm}) $ range used to select the electron/positron candidate events.

Background estimation—There are three components contributing to the background of the candidate electrons/positrons: (a) residual CR protons, (b) the secondary electrons/positrons from the interactions between the CR nuclei and Earth's atmosphere, and (c) the residual electrons in the candidate positrons and the residual positrons in the candidate electrons owing to the limited angular resolution of DAMPE ($ \sim $ 0.2°). The residual CR protons are the main background in the candidate electrons/positrons. The $ \ln (RMS_r/\text{mm}) $ distributions of the MC simulations are adopted as templates to fit the distributions of candidate events. However, the MC distributions are not completely consistent with the flight data distributions, for which a smearing (shift and broadening) is applied on the MC simulations to match the flight data. Figure 2 shows the template fits on the candidate electrons and candidate positrons for the energy ranges 11.5−13.2 GeV and 15.1−17.3 GeV, respectively. The proton background of the candidate electrons varies from $ \sim $ 5% at 12 GeV to $ \sim $ 16% at 19 GeV, whereas the proton background of the candidate positrons varies from 39% at 12 GeV to 65% at 19 GeV. In the energy range from 10 to 20 GeV, as the secondaries are closely collimated along the direction of the primary [6], they tend to fall adjacent to the edge of the blocked region, which is outside the effective field of view of DAMPE. Therefore, the secondary contamination is negligible. The third type of background is estimated by mixing MC electrons and positrons in a ratio of 1% to 5.5% to simulate the CR condition in the energy range from 10 to 20 GeV. The final results show that the positron background in the electron sample is negligible, whereas the electron background in the positron sample is approximately 0.9%. Furthermore, the contamination from helium is suppressed by the charge selection and the shower selection to the level of $ 10^{-5} $ for electrons and $ 10^{-3} $ for positrons, which are negligible. After background subtraction, we obtain $ 7.08\times10^5 $ electrons and $ 3.73\times10^4 $ positrons.

Effective acceptance—The selection efficiencies are obtained from MC simulations. The effective acceptance of the i-th kinetic energy bin is defined as

where $ A_{{\rm geo}} $ is the geometrical factor of the MC event generator sphere, $ N_{{\rm sel},i} $ is the number of events passing all the selections including the backtracing to separately select the positrons and electrons (region selection) mentioned above, and $ N_{{\rm gen},i} $ is the total number of generated events. Figure 3 shows the effective acceptance of CR electrons and positrons as a function of the kinetic energy. As the geomagnetic field is asymmetric, the size of the ''electron-only'' region differs from that of the ''positron-only'' region. Therefore, the effective acceptance of electrons is relatively higher than that of positrons.

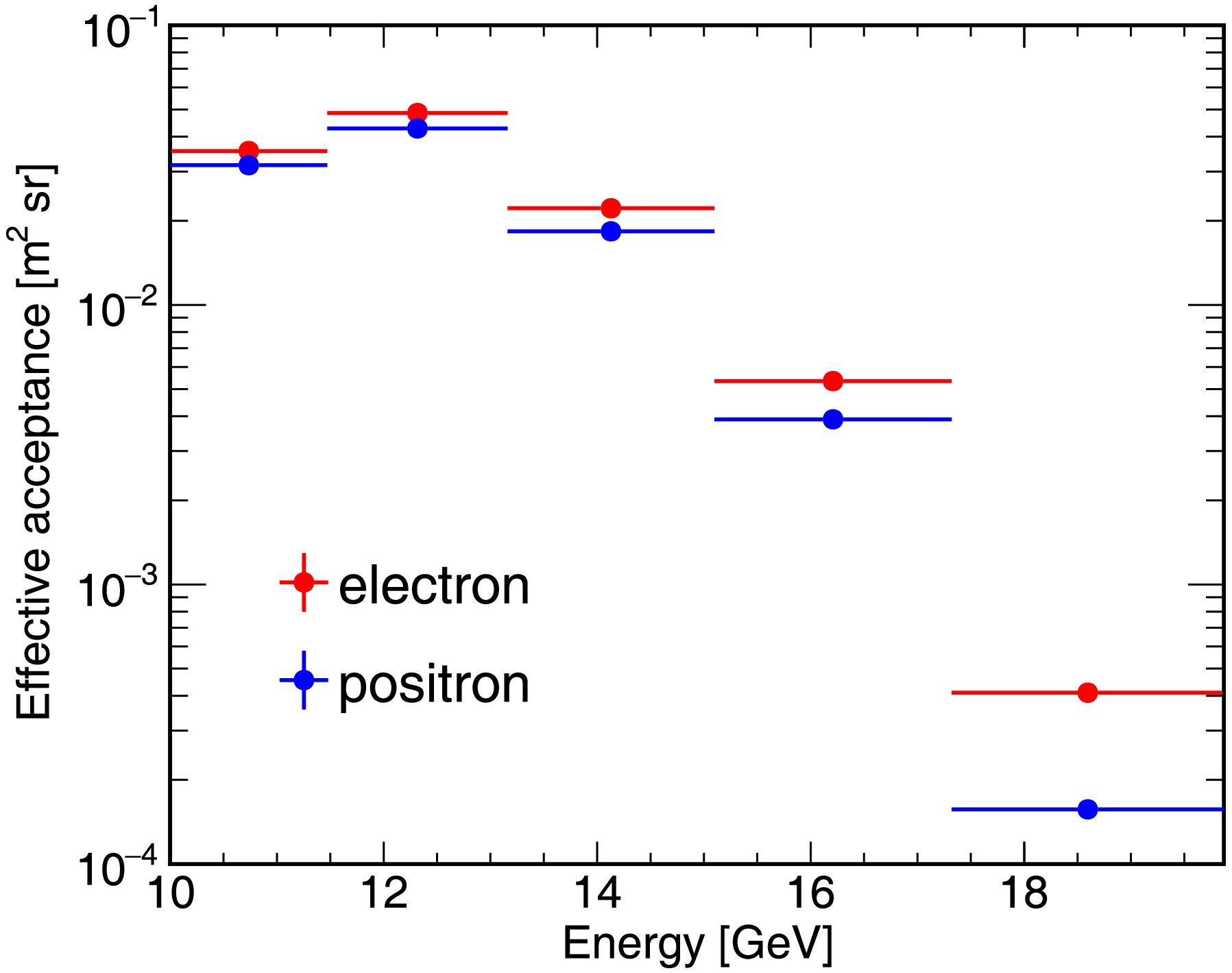

Figure 3.  (color online) Effective acceptance of CR electrons and positrons as a function of the kinetic energy, derived from MC simulations. The difference in the effective acceptance of electrons and positrons originates from the asymmetry of the geomagnetic field, which causes the size of the ''electron-only'' region to be different from that of the ''positron-only'' region. Therefore, the region selection efficiency of positrons differs from that of electrons.

Systematic uncertainty—There are several sources of systematic uncertainties of the measurements. A control electron sample is selected with tight cut on $ \ln (RMS_r/\text{mm}) $ ($ \le $ 3.0) to evaluate the efficiencies of selections for MC electrons and CR electrons, and the uncertainties are expressed by the difference between the two efficiencies. The results were $ \sim $ 0.9% for HET, $ \sim $ 0.7% for track selection, and $ \sim $ 0.1% for charge selection. Furthermore, the systematic uncertainties related to the upper limit requirement of $ \ln (RMS_l/\text{mm}) $ and $ F_{\rm last} $ are negligible. CR positrons are assumed to behave similarly as CR electrons in the detector. Therefore, we adopt the uncertainties related to the selections discussed above as the systematic uncertainties of positrons.

For other selections, it is not possible to build control samples. Therefore, we changed the upper limit of the N-fired in the BGO from $ N_{{\rm limit}} $ to $ N_{{\rm limit}}+3 $, and observed that the electron flux changes by $ \lesssim $ 2% and the positron flux changes by $ \lesssim $ 5% over the entire energy range. Furthermore, we varied the selection window of the $ \ln (RMS_r/\text{mm}) $, and observed the final difference of electron flux to be$ \lesssim $ 2% over the entire energy range. For positrons, the flux difference is $ \lesssim $ 3% below 18 GeV and $ \sim $ 27% up to 19 GeV. The differences are treated as the quadrature sum of the systematic uncertainties of the $ \ln (RMS_r/\text{mm}) $ selection and the proton background estimation.

The energy resolution function of the MC simulations is assumed to precisely match the flight data. To check the validity of the consistency of the two energy resolution functions, we performed the same analysis procedures with different energy bins to estimate the difference between the two energy resolution functions. The final differences of the electron/positron fluxes are negligible.

The IGRF-12 model is used to simulate the behavior of the CR $ e^-/e^+ $ in the geomagnetic field. To evaluate the systematic uncertainty introduced by the model, we reduced the size of the ''electron-only'' and ''positron-only'' regions by 1°. The electron flux changes by $ \lesssim $ 2% and the positron flux changes by $ \lesssim $ 1% over the entire energy range. To verify whether the signal region obtained using the IGRF-12 model is applicable to data collected after 2020, we calculated the systematic uncertainty with the same method using data from 2021 to 2024. The results are consistent with those obtained using the full dataset discussed above, indicating that the variation of the signal region over time is minimal. Furthermore, the systematic uncertainty induced by the limited angular resolution is covered by the differences described above. The total systematic uncertainty is given by the quadrature sum of the above uncertainties.

Figure 4 shows the systematic uncertainties discussed above and the statistical uncertainty (red solid line). The total uncertainty indicated by the black solid line is the quadrature sum of the statistical and systematic uncertainties.

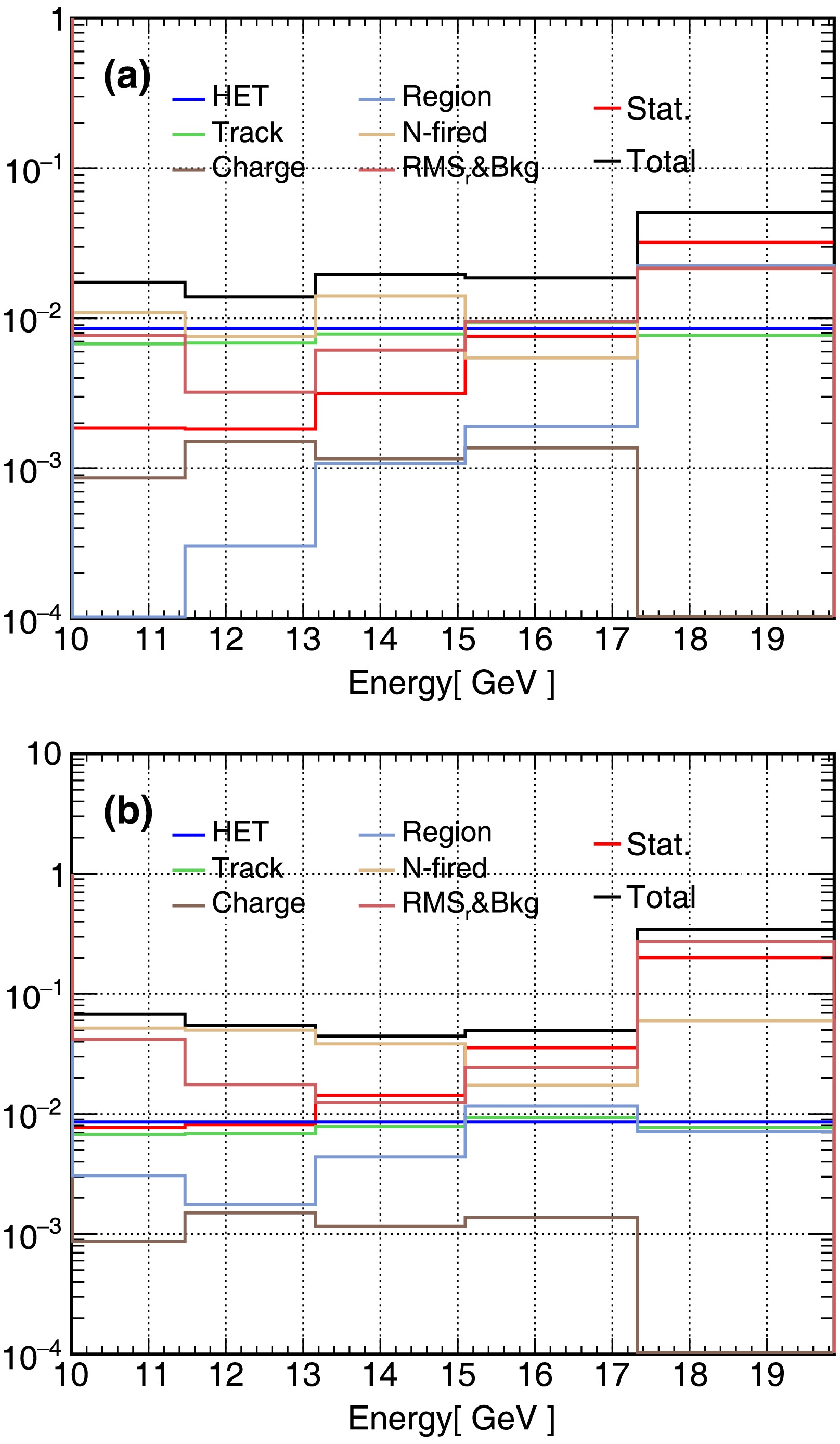

Figure 4.  (color online) The top panel shows the relative systematic and statistical uncertainties of the electron spectrum, and the bottom panel shows the uncertainties of the positron spectrum. The total uncertainty indicated by the black solid line is the quadrature sum of the statistical and systematic uncertainties.

The differential electron and positron fluxes in the kinetic energy bin [$ E_i, E+\Delta E_i $] are given by

where $ \Delta E_i $ denotes the energy bin width, $ N_{{\rm obs},i} $ is the number of observed events, $ A_{{\rm eff},i} $ is the effective acceptance, and $ T_{{\rm exp}} $ is the total live time. Figure 5 show the (a) electron and (c) positron spectra multiplied by $ E^3 $ and the (e) positron fraction in the energy range from 10 to 20 GeV, and the error bars represent the total uncertainty. For comparison, the separate electron and positron spectra and the positron fraction from AMS-02 [7, 32], PAMELA [5, 33], Fermi-LAT [6], and HEAT [4, 34] are presented in Fig. 5 (b)(d)(f). The detailed information of the results is shown in Table 1. The results of DAMPE are consistent with the previous measurements of AMS-02 and PAMELA, although the rising trend of positron faction is less pronounced owing to the relatively narrow energy range. Our measurements of separated electron and positron spectra offer an independent cross-check of previously reported results by AMS-02, PAMELA, and other experiments. The geomagnetic field is utilized to distinguish between CR electrons and positrons.

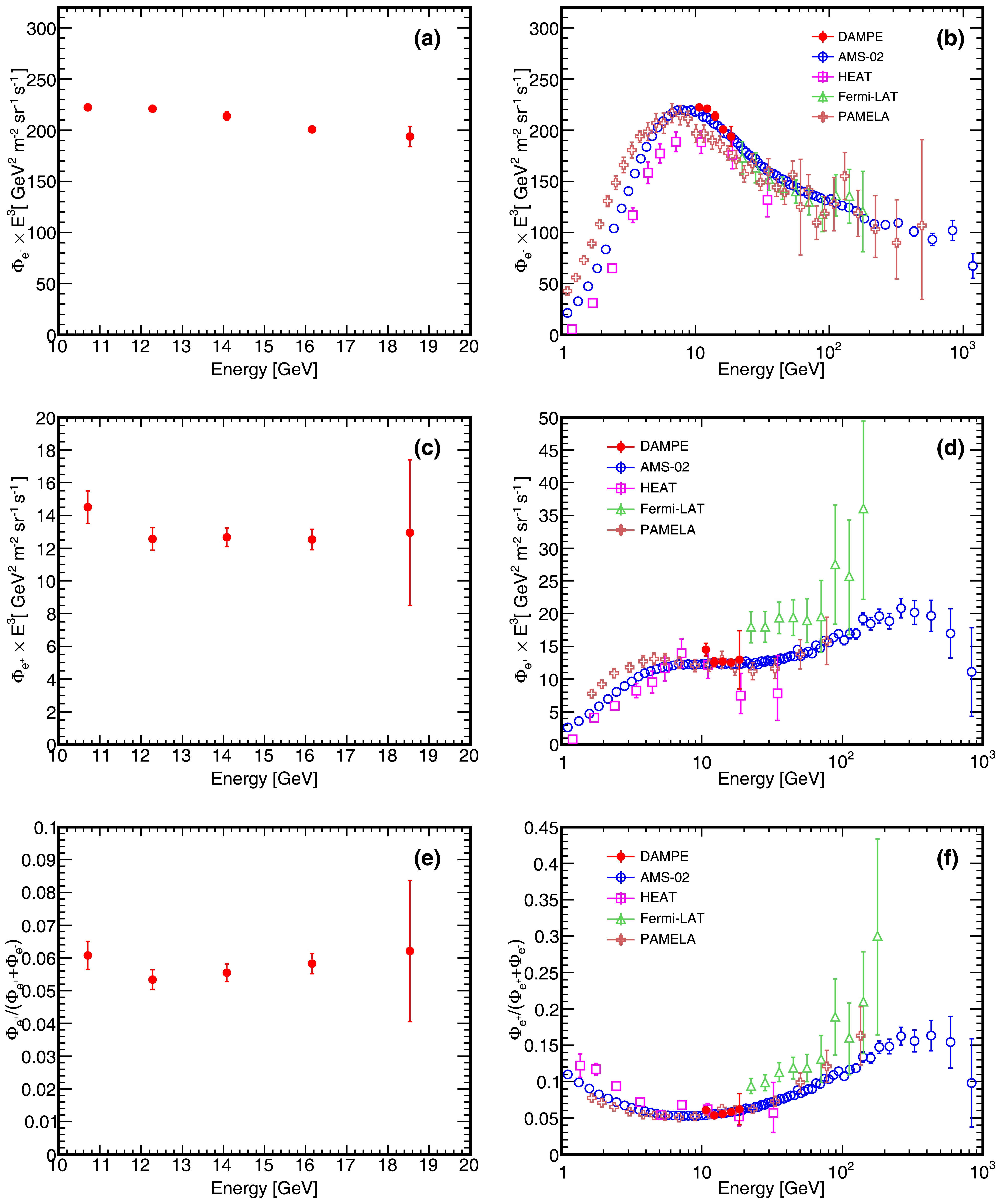

Figure 5.  (color online) (a) Electron spectrum and (c) positron spectrum of DAMPE multiplied by $ E^{3} $. (e) Positron fraction of DAMPE based on the measurements of separate electron and positron spectra. The error bars indicate total uncertainty. (b)(d)(f) Previous measurements of separate electron and positron spectra and positron fraction by AMS-02 [7, 32], PAMELA [5, 33], Fermi-LAT [6], and HEAT [4, 34] are presented for a comparison with the results of DAMPE. The measurement of Fermi-LAT is based on the calorimeter, whereas the other measurements are based on the magnetic spectrometer.

Energy/GeV	$ \tilde{E} $/GeV	$ \Phi(e^-) $/(GeV$ ^{-1} $m$ ^{-2} $sr$ ^{-1} $s$ ^{-1} $)	$ \Phi(e^+) $/(GeV$ ^{-1} $m$ ^{-2} $sr$ ^{-1} $s$ ^{-1} $)	$ \dfrac{\Phi(e^+)}{\Phi(e^+)+\Phi(e^-)} $
10.0-11.5	10.7	$ (1.82\pm0.00\pm0.03)\times10^{-1} $	$ (1.18\pm0.01\pm0.08)\times10^{-2} $	$ (6.06\pm0.05\pm0.42)\times10^{-2} $
11.5-13.2	12.3	$ (1.19\pm0.00\pm0.02)\times10^{-1} $	$ (6.79\pm0.06\pm0.36)\times10^{-3} $	$ (5.34\pm0.05\pm0.30)\times10^{-2} $
13.2-15.1	14.1	$ (7.65\pm0.02\pm0.15)\times10^{-2} $	$ (4.53\pm0.06\pm0.19)\times10^{-3} $	$ (5.55\pm0.08\pm0.26)\times10^{-2} $
15.1-17.3	16.2	$ (4.75\pm0.04\pm0.08)\times10^{-2} $	$ (2.97\pm0.11\pm0.10)\times10^{-3} $	$ (5.83\pm0.21\pm0.22)\times10^{-2} $
17.3-19.9	18.5	$ (3.04\pm0.10\pm0.12)\times10^{-2} $	$ (2.03\pm0.41\pm0.56)\times10^{-3} $	$ (6.2\pm1.2\pm1.8)\times10^{-2} $

Table 1.  Fluxes and positron fraction as a function of energy (GeV). Uncertainties are $ \pm $ stat. $ \pm $ syst. $ \tilde{E} $ is calculated by the method presented in the report of G.D. Lafferty and T.R. Wyatt [35].

Discussion—The measurements by Fermi-LAT appear to be systematically shifted to larger values, despite the use of a similar analysis method in this study. The overwhelming contamination of the proton in the positron sample of Fermi could be a factor in the observed discrepancy. Moreover, differences in satellite orientation may contribute to the discrepancy between DAMPE and Fermi-LAT. The flight data used in the analysis of Fermi are collected when the satellite is oriented sideways, allowing the satellite to receive a large amount of secondary electrons and positrons. Furthermore, the contamination induced by the mis-reconstruction of the track is not discussed in Fermi's work, which may also account for part of the observed difference. Extending the measurements to higher energy is possible if we can incline the detector in the future, and the detector would need to operate in an inclined orientation for approximately four years to obtain results comparable to those of Fermi.

In conclusion, our results in the energy range of 10 to 20 GeV are consistent with those of AMS-02 and PAMELA, offering an independent cross-check. In addition, by employing a similar geomagnetic separation technique as that used by the Fermi collaboration, our analysis helps fill the gap in the lower energy region that is not covered by Fermi. An in-depth exploration of this methodology also offers valuable insights for advancing fundamental physics research in related experiments, such as the high energy cosmic-radiation detection (HERD) facility [36] in the future.

Based on the different behaviors of the opposite charged particles in the geomagnetic field, the separate electron and positron spectra are measured from 10 to 20 GeV with nine years of DAMPE data as well as the positron fraction based on the two spectra. The results of DAMPE are consistent with the previous experiments, such as PAMELA and AMS-02. The measurements of CR$ e^+/e^- $at energies greater than 20 GeV are limited by the zenith-pointing orientation of DAMPE, and the satellite needs to collect four years of flight data with an inclined orientation to achieve comparable results to Fermi.

We acknowledge Hao-Ting Dai for the contributions in this study.
