Roles of tensor force and pairing correlation in two-proton radioactivity of halo nuclei

  • The tensor force and pairing correlation effects on the two-proton radioactivity of 18Mg and 20Si with a pronounced two-proton halo are explored in the framework of spherical Skyrme-Hartree-Fock-Bogoliubov theory. It is shown that the halo sizes are enhanced with the increase in the strength of the tensor force and pairing correlation. Furthermore, the increasing halo sizes lead to the enhancement of diproton emission. Then, the tensor force is found to have a small influence on the two-proton decay energies, and the two-proton decay energies calculated with strong surface pairing are smaller than those with weak mixed pairing. Because the two-proton decay energies are relatively large, the predicted order of magnitude of half-lives within the effective liquid drop model is not sensitive to the decay energy variation caused by the tensor force and pairing correlation, which has a value of approximately 1018 s.
  • In the 1960s, Zel'dovich and Goldansky predicted the possibility of two-proton (2p) radioactivity from the ground state of a nucleus near or beyond the proton drip-line [13]. Goldansky pointed out that the predicted 2p radioactivity half-life was greater than 1012 s, and its decay energy was lower than that of the corresponding one-proton (1p) radioactivity. This type of 2p radioactivity was called true 2p radioactivity [4]. Because of the pairing effect, true 2p radioactivity usually occurs in even-Z nuclei so that the corresponding 1p decay channel is forbidden. Accordingly, true 2p decay energies may have the following features: Q2p>0 and Qp<0, where Q2p and Qp are the 2p and 1p decay energies, respectively. However, true 2p radioactivity was not observed until 2002 because the production of nuclei near the drip-line is difficult. In 2002, true 2p radioactivity was discovered from 45Fe at the fragment separator of GSI and at the SISSI-LISE3 facility of GANIL [5, 6]; the measured half-lives of the 2p radioactivity were 4.7+3.41.4 ms and 3.2+2.61.0 ms, respectively. Several years later, more nuclei with true 2p radioactivity were synthesized: 48Ni [7], 54Zn [8], and 67Kr [9]. Meanwhile, the measured 2p decay half-lives of 48Ni, 54Zn, and 67Kr were at the level of ms. To date, 2p radioactivity with long half-lives has only been observed from the above four nuclei. However, 2p radioactivity from the very short-lived nuclear ground states of 6Be [10], 12O [11, 12], 16Ne [11, 13], 19Mg [14], and 30Ar [15] has been observed. The orders of magnitude of the measured 2p decay half-lives were approximately at the level of ps.

    Since the prediction of 2p radioactivity, many models have been proposed to describe its decay properties [1645]. Generally, the 2p radioactivity process can be described by the following three pictures: (i) Diproton ("2He") emission. A strongly correlated emission of the two protons which, owing to the proton–proton attraction, form an 1S0 resonance. Because the proton–proton system is not bound, this diproton structure most likely decays under the Coulomb barrier and two individual protons are observed outside the nucleus [1632]; (ii) “Three-body decay.” Completely uncorrelated emission, where only energy, momentum, and angular momentum conservation have to be respected for simultaneous emission [3045].

    However, the mechanism of 2p radioactivity is not yet clear. It is necessary to study the structure of extremely proton-rich nuclei because 2p radioactivity is strongly dependent on the nuclear structure. Although proton-rich nuclear structures have been investigated using various models [4655], most studies are not directly correlated with the mechanism of 2p radioactivity.

    Recently, Saxena et al. studied the 2p radioactivity of light mass nuclei (A = 18−34) with a 2p halo using the relativistic mean-field plus BCS approach and the macroscopic-microscopic model with the Nillson Strutinsky prescription [56]. It was shown that a 2p halo-like structure is more likely to decay via direct diproton emission. Generally, the formation of a halo can be understood as the scattering of particle pairs into the continuum containing low-lying resonances with small angular momenta by the pairing correlation [5762]. Therefore, the 2p radioactivity of the nuclei with a 2p halo may not only be correlated with the single-particle resonant states in the continuum but also be relevant to the pairing correlation.

    However, in the work of Saxena et al., the tensor force was neglected. Tensor force is the noncentral and nonlocal spin-spin interaction and serves as an important component of the nucleon-nucleon (NN) interaction. It has been introduced into various nuclear models, such as the shell model [63], ab initio approach [64], and self-consistent mean-field theory [6567]. The single-particle state evolutions of exotic nuclei are described successfully when the tensor force is included [6380]. In our previous study, we found that the giant neutron halo of neutron-rich Ca isotopes is suppressed owing to the shift in single-particle resonant orbits in the continuum caused by the tensor force [81]. This drives us to consider whether the low-lying continuum of 2p halo nuclei is influenced by the tensor force and whether 2p radioactivity is further affected. This constitutes the first motivation of this study.

    On the other hand, relevant studies have suggested that the halo is strongly influenced by the pairing correlation [59, 8284]. The large pairing effect on weakly bound neutrons, leading to the pairing anti-halo effect, has been discussed [82]. The influence of pairing interactions on the asymptotic properties of nucleonic distributions has demonstrated that the size of the neutron halo dramatically depends on the behavior of the pairing interaction at low density [83]. However, during a 2p decay process, little is known about the correlation between the two emitted protons. Therefore, it is interesting to study the pairing correlation effect on the 2p radioactivity of nuclei with a 2p halo. This is the second motivation of this study.

    It is well known that Skyrme-Hartree-Fock-Bogoliubov (SHFB) theory is a powerful tool to describe exotic nuclei [8588]. It can provide a unified and self-consistent description of both the mean-field and pairing field in terms of Bogoliubov quasi-particles. Based on the above two motivations and the advantage of SHFB theory, we investigate the tensor force and pairing correlation effects on the 2p radioactivity of 2p halo nuclei in the framework of spherical SHFB theory [8588]. This article is organized as follows. In Sec. II, the theoretical framework is presented, Sec. III presents the calculated results and discussions, and several conclusions are drawn in the final section.

    The fundamental task of nuclear many-body physics is to understand the nuclear structure and reaction using many-body calculations starting from the NN interaction. Usually, the modern NN interaction refers to the bare nuclear force (for instance, Argonne v18(95) [89] and Reid(93) [90]), meson exchange potential [9195], and potential from low-energy quantum chromodynamics via chiral effective field theory [96, 97]. Nevertheless, the phenomenological NN interaction still plays an important role in nuclear many-body calculations. The Skyrme interaction is a kind of phenomenological NN interactions. Many properties of unstable nuclei are described successfully within SHFB theory, including tensor force [8588]. In this section, spherical SHFB theory with the tensor force and the specific investigation procedure of this study are introduced.

    The Skyrme interaction is written as

    VSkyrme=V12+VT12,

    (1)

    where V12 and VT12 denote the usual and tensor force parts of the interaction, respectively.

    The expression for V12 is [86]

    V12=t0(1+x0Pσ)δ(r1r2)+12t1(1+x1Pσ)[k2δ(r1r2)+δ(r1r2)k2]+t2(1+x2Pσ)kδ(r1r2)k+16t3(1+x3Pσ)ργδ(r1r2)+iW0(σ1+σ2)[k×δ(r1r2)k],

    (2)

    where ti, xi (i =1, 2, 3), and W0 are the parameters of the interaction, Pσ is the spin-exchange operator, and σi are the Pauli matrices. The operator k=(12)/2i acts on the right and k=(12)/2i acts on the left.

    VT12 can be expressed as [6779]

    VT12=T2[(σ1k)(σ2k)13(σ1σ2)k2]δ(r1r2)+T2δ(r1r2)[(σ1k)(σ2k)13(σ1σ2)k2]+U2[(σ1k)δ(r1r2)(σ2k)+(σ2k)δ(r1r2)×(σ1k)]13U(σ1σ2)kδ(r1r2)k,

    (3)

    where T and U are the strengths of the triplet-even and triple-odd tensor interactions, respectively.

    In the pairing channel, a density-dependent δ interaction is employed, whose form is

    Vpair(r1,r2)=V0(1ηρ(r)ρ0)δ(r1r2),

    (4)

    where V0 denotes the pairing strength. It is determined along with a certain cutoff quasiparticle energy using the mean neutron pairing energy gap of 120Sn (1.31 MeV). Usually, the cutoff quasiparticle energy is taken as 60 MeV. In Eq. (4), ρ(rr) is the isoscalar local density, and ρ0 is the nuclear matter saturation density, fixed at 0.16 fm3. The η values are 0, 0.5, and 1 for volume, mixed, and surface pairing, respectively.

    The total energy E of a nucleus is the sum of the kinetic, usual Skyrme, pairing, Coulomb, and tensor energies,

    E=K+ESkyrme+EPair+ECoul+ETensor=d3r[k(r)+εSkyrme(r)+εPair(r)+εCoul(r)+εTensor(r)],

    (5)

    where k, εSkyrme, εPair, εCoul, and εTensor are the corresponding energy densities. Their expressions can be found in Ref. [86].

    In the case of spherical symmetry, single-particle wave functions have the good quantum numbers (nljmq), and all the solutions inside an (nljq)-block are degenerate. Furthermore, the radial part of the wave functions can be chosen to be real. Thus, the wave function is

    φi(E,rσ)=ui(nlj,r)rY(l)ml(ˉr)lml12σ|jm,i=1,2,

    (6)

    u1 and u2 are the radial wave functions.

    The particle and pairing densities can be written using the radial functions

    ρ(r)=14πr2nlj(2j+1)u22(nlj,r),

    (7)

    ˜ρ(r)=14πr2nlj(2j+1)u1(nlj,r)u2(nlj,r).

    (8)

    For the normal and abnormal kinetic densities, we have

    τ(r)=nlj2j+14πr2[(u2(nlj,r)u2(nlj,r)r)2+l(l+1)r2u22(nlj,r)],

    (9)

    ˜τ(r)=nlj2j+14πr2[(u1(nlj,r)u1(nlj,r)r)×(u2(nlj,r)u2(nlj,r)r)+l(l+1)r2u1(nlj,r)u2(nlj,r)].

    (10)

    Here, ui'(nlj,r) (i = 1, 2) is the first order derivative with respect to the radial coordinate r.

    The spin current vector densities are given by

    J(r)=14πr3nlj(2j+1)[j(j+1)l(l+1)34]u22(nlj,r),

    (11)

    ˜J(r)=14πr3nlj(2j+1)[j(j+1)l(l+1)34]×u1(nlj,r)u2(nlj,r).

    (12)

    Generally, the tensor term, also known as the J2 term, originates from both the zero-range central and tensor forces. By considering these two types of forces, εTensor can be written as

    εTensor(r)=12α(J2q+J2q)+βJqJq,

    (13)

    where α and β are the like-particle and proton-neutron coupling constants, respectively. The subscript label q denotes neutrons (protons) and q represents protons (neutrons).

    Because the particle number cannot be preserved by the Bogolyubov transformation, two Lagrangian multipliers λN and λZ are introduced to conserve the average neutron and proton numbers. Then, the SHFB equation is obtained using the stationary condition δ[EλNN+λZZ]=0.

    In the particle-hole channel, the spin-orbit coupling field has the following form [76, 77]:

    Bqs.o.=Bρ+BC+BT=W02r(2dρqdr+dρq,dr)+(αCJqr+βCJq,r)+(αTJqr+βTJq,r),

    (14)

    where Bρ, BC, and BT are from the contributions of the particle density, central exchange force, and tensor force, respectively.

    The coupling constants in Eq. (14) are α=αC+αT and β=βC+βT. Therefore, Eq. (14) can be modified to

    Bqs.o.=W02r(2dρqdr+dρq,dr)+αJqr+βJq,r.

    (15)

    Moreover, αC, βC, αT, and βT have the following forms:

    αC=18(t1t2)18(t1x1t2x2),βC=18(t1x1+t2x2),

    (16)

    αT=512U,βT=524(T+U).

    (17)

    Expressions for the normal effective mass field Mq, abnormal effective mass field ˜Mq, and other potential fields (the particle-hole field Uq, particle-particle field ˜Uq, Coulomb field UC(r), and abnormal spin-orbit field ˜Bq) can be found from Ref. [86].

    The above fields in matrix form can be written as

    M=(M˜M˜MM),U=(Uλ˜U˜UU+λ),

    (18)

    Uso=(B˜B˜BB)j(j+1)l(l+1)342r.

    (19)

    Finally, the bulk and microscopic properties can be obtained by solving the following SHFB equation in the coordinate representation:

    [ddrMddr+U+Ml(l+1)r2+Mr+Uso](u1u2)=E(u1u2),

    (20)

    where M is the first order derivative with respect to the radial coordinate r.

    The tensor force has ever been added as a perturbation to existing Skyrme parameterization, for example, SLy5+T parameterization [70]. However, Lesinski et al. pointed out that the tensor force should not be added perturbatively to existing interactions and a complete refit of the entire parameter set is imperative [67]. Therefore, they constructed a set of 36 Skyrme parameterizations, covering a wide range of the parameter space of the isoscalar and isovector tensor term coupling constants with a fit protocol similar to that of the successful SLy parameterizations [67]. The 36 Skyrme parameterizations are known as TIJ (I(J) = 1, 2, 3..., 6) parameterizations, where the indices I and J are related to the coupling constants β and α of Eqs. (13) and (15),

    α=60(J2),β=60(I2).

    (21)

    The tensor effect can be shown by the evolution of nuclear structure with I or J.

    Based on the above introductions, the specific procedure of this study is as follows. First, nuclei with a 2p halo are sought out by calculating the 2p separation energies (S2p) and charge radii (Rch) of the extremely proton-rich Ne, Mg, Si, S, Ar, and Ca isotopes using the mixed pairing force within 24 sets of the TIJ (I = 1, 2, 3, 4; J = 1, 2, 3..., 6) parameterizations. Next, the J2 term tensor effect on the 2p radioactivity of the 2p halo nuclei is explored with the selected interactions T1J (J = 1, 2, 3..., 6) and TI1 (I = 1, 2, 3, 4). Finally, the pairing correlation effect on the 2p radioactivity of the nuclei with a 2p halo is discussed.

    To show the tensor feature of the T1J and TI1 interactions clearly, the evolutions of Bps.o. and Q2p with the tensor parameter α or β are necessary, which are described in the next paragraphs.

    From Eq. (15), we can see that Bps.o. is directly relevant to the W0, α, and β terms. For the T1J interactions, β is not changed. Meanwhile, ρ(rr) and Jq(r) are assumed to be constant with different J values for a given nucleus. With these conditions, the Bps.o. increment (ΔBps.o.) is only determined by the W0 increment (ΔW0) and α increment (Δα),

    ΔBps.o=Bps.o(T1J)Bps.o(T1X),(X<J,JX=1),=12r(WT1J0WT1X0)(2dρpdr+dρndr)+(αT1JαT1X)Jpr,=12rΔW0(2dρpdr+dρndr)+ΔαJpr,

    (22)

    where Bps.o.(T1X) and Bps.o.(T1J) represent the proton spin-orbit coupling potentials with the T1X and T1J interactions, respectively.

    Similarly, ΔBps.o. with the TI1 interactions can be expressed as

    ΔBps.o=12rΔW0(2dρpdr+dρndr)+ΔβJnr.

    (23)

    In addition, Q2p is influenced by the J2 term because εTensor has a certain contribution to the binding energy E of a nucleus, which can be seen from Eqs. (5) and (13). For the T1J interactions, the Q2p increment (ΔQ2p) with J is written as

    ΔQ2p=QT1J2pQT1X2p,(X<J,JX=1),=(ET1JdaughterET1Jparent)(ET1XdaughterET1Xparent),=(ET1XparentET1Jparent)(ET1XdaughterET1Jdaughter),

    (24)

    where ET1Xparent and ET1Jparent are the total binding energies of a parent nucleus with the T1X and T1J interactions, respectively. ET1Xdaughter and ET1Jdaughter refer to the total binding energies of a daughter nucleus with the T1X and T1J interactions, respectively.

    Note that the kinetic energy density k, pairing energy density εPair, and Coulomb energy density εCoul are not relevant to the Skyrme parameterizations [86], and for the T1J interactions, the ti and xi (i = 1, 2, 3) values change slightly with increasing J except for the W0 and α values. In this case, the contributions to the terms in the brackets of Eq. (24) from k, εPair, and εCoul and the terms that are correlated to ti and xi in the Skyrme energy density εSkyrme almost cancel each other out. As a result, ΔQ2p is determined mainly by the spin-orbit energy density (the W0 term in εSkyrme) and εTensor. Therefore, Eq. (24) is modified to

    ΔQ2p12(WT1X0WT1J0)d3r[(Jρ+Jpρp)parent(Jρ+Jpρp)daughter]+12(αT1XαT1J)d3r[(J2p+J2n)parent(J2p+J2n)daughter],=12ΔW0d3r[(Jρ+Jpρp)parent(Jρ+Jpρp)daughter]12Δαd3r[(J2p+J2n)parent(J2p+J2n)daughter].

    (25)

    Similarly, for the TI1 interactions, ΔQ2p originates from the terms ΔW0 and Δβ

    ΔQ2p12ΔW0d3r[(Jρ+Jpρp)parent(Jρ+Jpρp)daughter]12Δβd3r[(J2p+J2n)parent(J2p+J2n)daughter].

    (26)

    For all the calculations in this study, the spherical box and mesh sizes are selected as 20 fm and 0.1 fm, respectively. The quasiparticle energies are cut off at 60 MeV. The maximum angular momentum of the quasiparticles jmax is set to be \dfrac{25}{2}\hbar . All calculations converge with these conditions. In the next subsections, we discuss the following three aspects: nuclei with a 2p halo, the \mathcal{J}^{2} term tensor effect on the 2p radioactivity of 2p halo nuclei, and the pairing correlation effect on the 2p radioactivity of 2p halo nuclei.

    First, the S_{2p} values of the extremely proton-rich Ne, Mg, Si, S, Ar, and Ca isotopes within the 24 sets of TIJ parameterizations (I = 1, 2, 3, 4; J = 1, 2, 3..., 6) versus A are shown in Fig. 1. Note that for the O isotopes, the calculated binding energies of their daughter nuclides (C nuclides) are not in agreement with the experimental data. Therefore, in Fig. 1, the S_{2p} values of the O isotopes are not shown. In Fig. 1, the experimental data [15, 98, 99] shows that ^{16} Ne, ^{18} Mg, and ^{30} Ar are located beyond the 2p drip-line with negative S_{2p} values, that is, the three nuclei are unbound. For the unbound nucleus ^{18} Mg, the four-proton radioactivity was observed recently from its ground state [99]. The decay of the ground state is consistent with two sequential steps of 2p decay, that is, ^{18} Mg _{\text{g.s.}} \rightarrow ^{16} Ne _{\text{g.s.}} + 2p followed by ^{16} Ne _{\text{g.s.}} \rightarrow {} ^{14}O _{\text{g.s.}} + 2p . The Q_{2p} values of the first and second decay steps are 3.44 MeV and 1.42 MeV, respectively. With the relationship Q_{2p} = -S_{2p} , it is easy to find that the experimental S_{2p} value of ^{18} Mg is –3.44 MeV, which is marked in Fig. 1 by a red star. The unbound nucleus ^{30} Ar was identified by the measurement of the trajectories of its in-flight decay products ^{28} S+p+p [15]. Via analysis of the angular correlations of the fragments, the Q_{2p} value of the ground state of ^{30} Ar is determined as 2.25 _{-0.10}^{+0.15} MeV. Hence, its ground state experimental S_{2p} value is -2.25 _{-0.15}^{+0.10} MeV, which is marked by a black star in Fig. 1. As shown in Fig. 1, ^{16} Ne and ^{18} Mg are predicted to be unbound with S_{2p} < 0 by all the interactions. Moreover, the S_{2p} values of ^{16} Ne and ^{18} Mg extracted from all the Skyrme interactions are in good agreement with the experimental values. However, the calculations with all the interactions reveal that ^{24} S and ^{32} Ca are 2p unbound, and the calculated S_{2p} values of the S and Ca isotopes within all the interactions have a certain deviation from the extant experimental data. ^{22} Si is predicted to be an unbound nucleus only within the T14, T15, T16, T25, T26, and T36 interactions. However, ^{30} Ar is also predicted to be 2p unbound by other interactions besides the above six interaction types.

    Figure 1

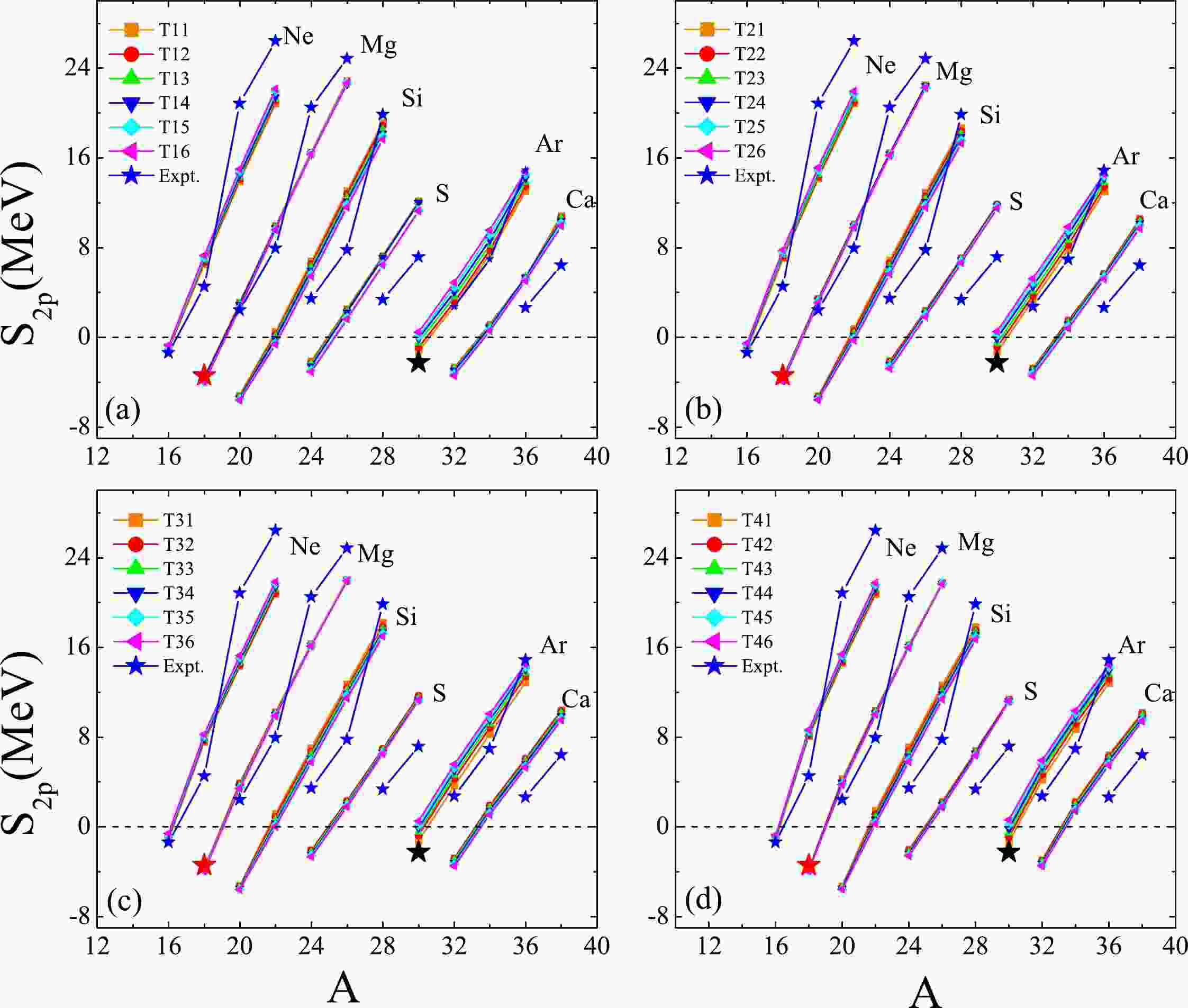

    Figure 1.  (color online) S_{2p} values of the Ne, Mg, Si, S, Ar, and Ca isotopic chains versus the mass number A within the 24 sets of TIJ interactions (I = 1, 2, 3, 4; J = 1, 2, 3..., 6). The blue stars represent the experimental S_{2p} values taken from Ref. [98]. The red star is the experimental S_{2p} value of ^{18} Mg, which is taken from Ref. [99]. The black star is the experimental S_{2p} value of ^{30} Ar taken from Ref. [15].

    Relevant studies suggest that direct diproton emission may be enhanced by the 2p halo because the 2p halo would lead to a larger spectroscopic factor for a direct diproton decay than that for a sequential decay or a three-body emission [33, 100, 101]. For nuclei with a 2p halo, the charge density on the nuclear surface is extremely low; therefore, the ^{2} He cluster preforms more easily under such a condition. As a result, the probability of the direct ^{2} He emission increases. Recent studies indicate that the 2p halo plays an important role in diproton emission [56, 102105]. Therefore, searching for nuclei with a 2p halo is crucial for the study of 2p radioactivity. To search for candidates with a 2p halo, the R _{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopes computed within the 24 sets of TIJ interactions are shown in Fig. 2. As shown in Fig. 2, the R _{ch} values of ^{18} Mg and ^{20} Si are considerably larger than those of the other nuclides for all the interactions. Therefore, it is speculated that ^{18} Mg and ^{20} Si may be nuclei with a 2p halo.

    Figure 2

    Figure 2.  (color online) R_{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopes versus A within the 24 sets of TIJ interactions (I = 1, 2, 3, 4; J = 1, 2, 3..., 6). Meanwhile, in each subfigure, R_{ch} varies with J, and I remains a constant. The blue stars represent the experimental R_{ch} values taken from Ref. [106].

    To further confirm whether the 2p halo structure exists in ^{18} Mg and ^{20} Si, the deformations of the two nuclei are evaluated using deformed SHFB theory with the T31 interaction, where ^{18} Mg and ^{20} Si are found to be nearly spherical. In addition, relevant studies suggest that the 2p halo-like structure rather than the deformation is responsible for the 2p correlation and the mechanism of 2p emission [56, 102105]. Therefore, with the microscopic single-proton energy spectra obtained within spherical SHFB theory, we can examine the 2p halo structure of ^{18} Mg and ^{20} Si. In Fig. 3, we plot the single-proton energy spectra and relative contributions of different orbits to the full density with the T31 interaction. As shown in Figs. 3(a) and (b), the 2s _{1/2} states of ^{18} Mg and ^{20} Si are not only close to the Fermi energies but also located in the region of the resonant states in the continuum. As a result, a certain number of protons occupy the resonant 2s _{1/2} state with a sizable probability owing to the pairing. Furthermore, the contribution of the 2s _{1/2} state to the full density of the large r region is dominant, which can be seen from Figs. 3(c) and (d). Because the centrifugal barrier of the 2s _{1/2} state is zero, the valence protons can tunnel out of the potential barrier and reach the large r region. Then, an extended density tail forms and the 2p halo appears.

    Figure 3

    Figure 3.  (color online) Upper panel: Single-proton energy spectra and proton mean-field potentials of ^{18} Mg and ^{20} Si within the T31 interaction. Lower panel: Corresponding relative contribution of each orbit to the density as a function of radius. The occupation probabilities of the single-proton levels are proportional to their length. The Fermi energies are depicted by the red dotted lines.

    Owing to the 2p halos of ^{18} Mg and ^{20} Si, the 2p decay type of the two nuclei is speculated as diproton emission in view of Refs. [33, 56, 100, 101] and the speculation of Refs. [102105]. Moreover, ^{12} O, ^{16} Ne, ^{24} S, and ^{30} Ar without 2p halos are preferred to sequential or three-body radioactivity. From the experimental perspective, the reasonableness of the conclusion of Refs. [33, 56, 100, 101] and the speculation of Refs. [102105] can be tested using the following experimental facts: The 2p radioactivity of ^{12} O and ^{16} Ne was confirmed to be the sequential type by the measurements of Azhari et al. [12]. The measurement of 2p decay in ^{16} Ne suggests its 2p decay type is the sequential one [11, 13]. In ^{30} Ar [15], a transition interplay of true three-body and sequential 2p decays was detected from the measured angular correlations of the decay products. Therefore, the predicted 2p emission modes of ^{12} O, ^{16} Ne, and ^{30} Ar are consistent with those of the measurements.

    According to Eq. (21), the tensor parameters α and β are correlated with the indices J and I, respectively. Therefore, from each subfigure of Fig. 2, the impact of α on R _{ch} can be observed because J continues increasing and I remains a constant. Moreover, the \mathcal{J}^{2} term tensor effect of α on R _{ch} of ^{20} Si is the most evident. By analyzing Eq. (22), the tensor effect on R _{ch} can be understood. In addition, the spin-orbit coupling potentials, single-proton energy spectra, and density distributions of ^{20} Si within the T1J interactions are displayed in the left panel of Fig. 4.

    Figure 4

    Figure 4.  (color online) Proton spin-orbit coupling potentials, single-proton energy spectra, and density distributions of ^{20} Si with the T1J (J = 1, 2, 3..., 6) interactions and those with the TI1 (I = 1, 2, 3, 4) interactions. The Fermi energies are depicted by the red solid squares. To observe the evolution of the single-proton energy spectra with J or I clearly, all the single-proton energy levels are of the same length.

    In Eq. (22), \Delta B _{s.o.}^{p} is determined by the \Delta W_{0} and \Delta \alpha terms. Table 1 shows the values of W _{0} , α, \Delta W_{0} , and \Delta \alpha for different T1J interactions. As shown in Table 1, \Delta W_{0} and \Delta \alpha are negative and positive, respectively. Therefore, \Delta W_{0} makes a negative contribution to \Delta B _{s.o.}^{p} in Eq. (22). However, the contribution from \Delta \alpha to \Delta B _{s.o.}^{p} is positive. Therefore, \Delta W_{0} and \Delta \alpha compete with each other. Although W _{0} increases with increasing J, the tensor effect of α is not annihilated in the increasing W _{0} . In this respect, the influence of \Delta \alpha is stronger than that of \Delta W_{0} . This effect can be observed from the spin-orbit coupling potentials of ^{20} Si plotted in Fig. 4(a).

    Table 1

    Table 1.  v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{20} Si with the T1J (J = 1, 2, 3..., 6) interactions and those within the TI1 (I = 1, 2, 3, 4) interactions. For each T1J interaction, the W _{0} , α, \Delta W_{0} , and \Delta \alpha values are listed, and for each TI1 interaction, the W _{0} , β, \Delta W_{0} , and \Delta \beta values are given.
    Physical quantitiesT11T12T13T14T15T16
    \textit{v}^{2}0.6730.7210.7590.7930.8650.881
    \textit{R}_{ch}/fm3.8373.9634.0744.2004.5014.587
    \textit{W}_{0}/(MeV fm^{5})−103.738−112.506−120.411−128.506−136.554−144.925
    α/(MeV fm^{5})−60060120180240
    \Delta W_{0}/(MeV fm^{5})−8.768−7.905−8.095−8.048−8.371
    \Delta \alpha /(MeV fm^{5})6060606060
    Physical quantitiesT11T21T31T41
    \textit{v}^{2}0.6730.7000.7070.744
    \textit{R}_{ch}/fm3.8373.8843.9243.993
    \textit{W}_{0}/(MeV fm^{5})−103.738−115.277−126.989−138.146
    β/(MeV fm^{5})−60060120
    \Delta W_{0}/(MeV fm^{5})−11.539−11.712−11.157
    \Delta \beta /(MeV fm^{5})606060
    DownLoad: CSV
    Show Table

    As shown in Fig. 4(a), the spin-orbit potential decreases with increasing J, which weakens the splitting of the 1d orbit. For the T15 and T16 interactions, the 1d _{5/2} orbit exceeds the 2s _{1/2} orbit. These can be observed from Fig. 4(b). Furthermore, with the decrease in the 1d gap, the v ^{2} value of the 2s _{1/2} state is enhanced. The v ^{2} evolution of the 2s _{1/2} state with the T1J interactions can be observed from Table 1, which shows that the v ^{2} value increases from 0.673 with the T11 interaction to 0.881 with the T16 interaction. As a result, the increasing v ^{2} value makes the proton density distribution in a large r region extend progressively further, as shown in Fig. 4(c). Therefore, the R _{ch} values become progressively larger (See Table 1). In other words, the 2p halo size of ^{20} Si becomes enhanced with increasing α. Correspondingly, the diproton emission is enhanced with the increase in the 2p halo size.

    Similarly, for the TI1 interactions, the tensor effect of β on the 2p halo of ^{20} Si can be explained by Eq. (23) and the right panel of Fig. 4. As shown by Eq. (23), the relationship between \Delta W_{0} and \Delta \beta is also competitive. However, the influences on \Delta B _{s.o.}^{p} from the competitive \Delta W_{0} and \Delta \beta are close to each other, which can be observed clearly from Figs. 4(d-f).

    In Fig. 4(d), the peaks and outer parts of the large r region of the spin-orbit potential are almost the same for different interactions, but only the inner part (in the small r region) increases with increasing I. Hence, the 1d gap changes slightly owing to the similar peaks of the spin-orbit potentials. Nevertheless, 1d _{5/2} and 1d _{3/2} are shifted up together, which is shown in Fig. 4(e). Consequently, the v ^{2} value of the 2s _{1/2} state is enhanced with increasing I. The v ^{2} values of the 2s _{1/2} state with the T11, T21, T31, and T41 interactions are shown in Table 1. Table 1 shows that the v ^{2} value increases from 0.673 with the T11 interaction to 0.744 with the T41 interaction. Compared with the case of the T1J interactions, the increase in the v ^{2} value within the TI1 interactions is less obvious. Thus, the tail of the density distribution extends slightly, and the corresponding R _{ch} value increases from 3.837 to 3.993 fm (See Fig. 4(f) and Table 1). Therefore, the 2p halo size and diproton emission of ^{20} Si are less influenced by β than by α.

    To observe the 2p radioactivity of ^{18} Mg and ^{20} Si in future experiments, it is necessary to predict the half-lives within a reliable model. Therefore, the 2p radioactivity logarithm half-lives \log _{10}T_{1/2} ( \log _{10}T_{1/2}=\tau ) of the two nuclei are predicted within the effective liquid drop model (ELDM) [25, 107] by inputting the Q_{2p} values extracted from the 24 sets of TIJ parameterizations and the experimental Q_{2p} value. These Q_{2p} and τ values are shown in Table 2. In the framework of the ELDM, the two emitted protons are assumed to be a 2p -cluster with zero binding energy preforming near the surface of the parent nucleus. Then, the 2p -cluster penetrates the Coulomb barrier and the two protons separate quickly owing to the dominance of Coulomb repulsion. Within the mechanism of preformation and quantum tunneling, the experimental 2p radioactivity half-lives are well reproduced [25,107]. To some extent, 2p radioactivity is similar to α-decay [2628,107112]. In Table 2, the Q_{2p} and τ values of the two nuclei are divided into four groups according to the feature of the TIJ interactions. For each group, the Q_{2p} and τ values vary with J because I remains a constant. The situation is similar to those of Figs. 1 and 2. As shown in Table 2, the Q_{2p} values of ^{18} Mg and ^{20} Si are relatively large. Moreover, the Q_{2p} values in any group are impacted less by the tensor parameter J or α, even though the Q_{2p} evolution with J can be clearly observed. In each group, the Q_{2p} values become progressively larger with increasing J. Therefore, the two correlated protons inside a nucleus are easier to decay via the mechanism of quantum tunneling.

    Table 2

    Table 2.  Predicted 2p radioactivity logarithm half-lives \log _{10}T_{1/2} ( \log _{10}T_{1/2}=\tau ) of ^{18} Mg and ^{20} Si within the ELDM [25, 107] by inputting the experimental Q_{2p} value and those extracted from the 24 sets of T IJ interactions. The experimental Q_{2p} value of ^{18} Mg [99] is shown in bold.
    Skyrme interactions^{18}Mg ^{20}Si Skyrme interactions^{18}Mg ^{20}Si
    Q_{2p}/MeVτ/sQ_{2p}/MeVτ/sQ_{2p}/MeVτ/sQ_{2p}/MeVτ/s
    3.44−18.21
    T113.62−18.365.19−18.77T313.71−18.425.27−18.81
    T123.69−18.415.29−18.82T323.72−18.435.32−18.84
    T133.73−18.435.37−18.86T333.81−18.495.43−18.89
    T143.78−18.475.44−18.90T343.86−18.525.49−18.92
    T153.97−18.605.53−18.94T353.90−18.555.55−18.95
    T163.98−18.605.62−18.98T363.95−18.585.58−18.96
    T213.67−18.395.23−18.79T413.78−18.475.30−18.83
    T223.71−18.425.32−18.84T423.83−18.515.38−18.87
    T233.78−18.475.41−18.88T433.87−18.535.45−18.90
    T243.79−18.485.44−18.90T443.88−18.545.49−18.92
    T253.87−18.535.54−18.94T453.92−18.575.57−18.96
    T263.96−18.595.60−18.97T463.93−18.575.58−18.96
    DownLoad: CSV
    Show Table

    As shown by Eq. (25), \Delta Q_{2p} arises from the competition between \Delta W_{0} and \Delta \alpha . Moreover, if the contribution from \Delta W_{0} is dominant, \Delta Q_{2p} > 0 and \Delta \tau < 0. The Q_{2p} and τ evolutions with J in Table 2 belong to this situation. Otherwise, \Delta Q_{2p} < 0 and \Delta \tau > 0. In addition, the predicted τ values of ^{18} Mg and ^{20} Si within the ELDM are approximately –18 s, although the Q_{2p} values with any group of the TIJ interactions become progressively larger with increasing J. This indicates that the τ values are not sensitive to the Q_{2p} variation when the Q_{2p} values are large, as discussed in our recent study [27, 28]. Because the predicted τ values of the two nuclei from different TIJ interactions are similar, these τ values are useful for guiding experiments on 2p radioactivity with a new generation of radioactive ion beam facilities, for example, the High Intensity heavy-ion Accelerator Facility of China [113, 114].

    Similarly, the tensor effect of β on Q_{2p} and τ can be discussed by the competition between \Delta W_{0} and \Delta \beta in Eq. (26). However, the effect from \Delta \beta is weaker than that from \Delta \alpha .

    It has been shown that the 2p halo is related to the v ^{2} value of the resonant 2s _{1/2} state in the continuum. Therefore, in practical calculations, the 2p halo structure may be dependent on the pairing form. In the framework of SHFB theory, the zero range density dependent pairing interaction expressed in Eq. (4) includes the following three types of pairing interactions: volume, surface, and mixed pairing. Hence, it is interesting to investigate how the 2p halo structure is influenced by different types of pairings. In Fig. 5, we plot the S_{2p} and R_{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopic chains with volume, mixed, and surface pairing based on the T31 interaction. As shown in Fig. 5(a), ^{16} Ne and ^{30} Ar are predicted to be unbound by volume and mixed pairing. However, the two nuclei are predicted to be bound by surface pairing, which contradicts with the experimental fact that ^{16} Ne and ^{30} Ar are unbound nuclei with sequential 2p radioactivity. It seems that the predictive power of surface pairing is not stronger than those of volume and mixed pairing. Fig. 5(b) shows that the R_{ch} values of ^{12} O, ^{18} Mg, and ^{20} Si with surface pairing are larger than those with volume and mixed pairing. In particular, for ^{20} Si, its R_{ch} value via surface pairing is the largest. The R_{ch} value from mixed pairing is the second largest, and that from volume pairing is the smallest. This implies that the 2p halo is greatly enhanced with increased pairing.

    Figure 5

    Figure 5.  (color online) Same as Figs. 1 and 2 but with volume, mixed, and surface pairing based on the T31 interaction.

    To understand the 2p halo enhancement caused by the increasing pairing, the proton pairing fields \widetilde{\mathit{U}}_{p} , single-proton spectra, and density distributions of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction are shown in Fig. 6. In addition, in Table 3, we show the v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{18} Mg and ^{20} Si with the three types of pairings.

    Figure 6

    Figure 6.  (color online) Proton particle-particle fields \widetilde{\mathit{U}}_{p} , single-proton energy spectra, and density distributions of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction. All the single-proton energy levels are of the same length, and the Fermi energies are shown by red solid squares.

    Table 3

    Table 3.  v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction.
    NucleiPhysical quantitiesVolume pairingMixed pairingSurface pairing
    ^{18}Mg\textit{v}^{2}0.2450.3080.323
    \textit{R}_{ch}/fm3.2903.2983.410
    ^{20}Si\textit{v}^{2}0.6200.7070.486
    \textit{R}_{ch}/fm3.7583.9244.429
    DownLoad: CSV
    Show Table

    For ^{18} Mg, as shown in Fig. 6(a), the strongest, second strongest, and weakest pairing fields \widetilde{\mathit{U}}_{p} correspond to surface, mixed, and volume pairing, respectively. With the increase in \widetilde{\mathit{U}}_{p} , the splitting of the 1d orbit becomes progressively smaller (Fig. 6(b)). As a result, more and more protons occupy the 2s _{1/2} state. Then, the tail of the density distribution becomes progressively longer (Fig. 6(c)). Furthermore, progressively larger R _{ch} values are observed. This can be observed from the v ^{2} values of lines 3-4 in Table 3.

    For ^{20} Si, the situation is similar to that of ^{18} Mg, which can be observed clearly by comparing the two cases shown in Fig. 6 and Table 3. However, as shown in Table 3, the v ^{2} value of ^{20} Si with surface pairing is considerably smaller than those within volume and mixed pairing. This special phenomenon is attributed to the 2p intruder orbit. As shown in Fig. 6(e), the 2p _{1/2} and 2p _{3/2} orbits appear in the 1d gap. The filled protons in the 2p orbits make a certain contribution to the tail of the density distribution. Furthermore, the R _{ch} value of ^{20} Si within surface pairing becomes the largest.

    To observe the pairing correlation effect on Q_{2p} , the Q_{2p} values extracted from volume, mixed, and surface pairing based on the T31 interaction are listed in Table 4. Moreover, we show the corresponding τ values estimated within the ELDM [25, 107] by inputting the Q_{2p} values extracted from different pairings and the experimental Q_{2p} value [15, 98, 99]. As shown in Table 4, the Q_{2p} values of ^{18} Mg decrease with increased pairing. That is, the S_{2p} values increase with increased pairing. However, a special Q_{2p} evolution versus pairing is observed in ^{20} Si. The Q_{2p} ( S_{2p} ) value with mixed pairing is larger (smaller) than that with surface pairing. Thus, it is not difficult to discover that increased pairing correlations do not always lead to greater S_{2p} values and lower chemical potentials to increase nuclear stability. This discovery is different from that of a previous study on the change in the two-neutron separation energies caused by pairing correlations [83].

    Table 4

    Table 4.  Q_{2p} values extracted from volume, mixed, and surface pairing with the T31 interaction. The τ values are estimated within the ELDM [25, 107] by inputting the Q_{2p} values extracted from three types of pairings and the experimental Q_{2p} value. The experimental Q_{2p} value of ^{18} Mg [99] is presented in bold.
    Pairing interactions^{18}Mg^{20}Si
    Q_{2p}/MeVτ/sQ_{2p}/MeVτ/s
    3.44−18.21
    Volume3.80−18.484.97−18.66
    Mixed3.71−18.425.27−18.81
    Surface2.59−17.344.99−18.67
    DownLoad: CSV
    Show Table

    In the above discussions, we mention that the size of the 2p halo is enhanced by surface pairing. As a result, the direct diproton emission of ^{18} Mg and ^{20} Si may be enhanced by surface pairing, as concluded by previous studies [33, 56, 100105]. However, in Table 4, the Q_{2p} values of ^{18} Mg and ^{20} Si with surface pairing are smaller than those with mixed pairing. In other words, the smaller Q_{2p} values caused by surface pairing would lead to larger τ values, which can be clearly found in Table 4. Therefore, the diproton emission of the two nuclei becomes more difficult. Nevertheless, as shown inTables 2 and 4, the τ values of ^{18} Mg and ^{20} Si are barely dependent on the Q_{2p} variations because the Q_{2p} values are relatively large. Therefore, we can determine the order of magnitude of the 2p decay half-lives of ^{18} Mg and ^{20} Si, which is approximately 10 ^{-18} s.

    In this study, the tensor and pairing correlation effects on the 2p halo structure and 2p radioactivity of ^{18} Mg and ^{20} Si are explored in the framework of spherical SHFB theory. In addition, the 2p radioactivity half-lives of the two 2p nuclei are predicted within the ELDM. The obtained results allow us to draw the following conclusions:

    (i) Owing to the competition between the \Delta W_{0} and \Delta \alpha ( \Delta \beta ) contributions to the spin-orbit coupling potential, the 2p halo size and diproton emission become enhanced with the increase in the tensor parameter α or β. Moreover, the effect from α is stronger than that from β.

    (ii) The Q_{2p} values of ^{18} Mg and ^{20} Si are relatively large, and the impact from the \mathcal{J}^{2} tensor term on the Q_{2p} values is small. However, the Q_{2p} values become progressively larger with the increase in the tensor parameter. Further analysis suggests that the Q_{2p} evolution is originally from the competition between the \Delta W_{0} contribution to the spin-orbit energy density and the \Delta \alpha ( \Delta \beta ) contribution to the tensor energy density.

    (iii) The 2p halo size and diproton emission are strongly enhanced by pairing growth because more protons occupy the 2s _{1/2} state. However, for ^{20} Si, the 2p orbit intrudes into the 1d gap owing to surface pairing. The filled protons in the 2p orbits make a certain contribution to the tail of the density distribution, leading to a 2p halo with a larger size.

    (iv) The pairing correlation has a certain influence on the Q_{2p} values of ^{18} Mg and ^{20} Si. However, the Q_{2p} values with surface pairing are smaller than those with mixed pairing. As a mechanism of quantum tunneling, the diproton emission becomes more difficult via surface pairing.

    (v) The weak dependence of the τ values on the Q_{2p} variations caused by the \mathcal{J}^{2} tensor term and pairing correlation is found. Moreover, the order of magnitude of the 2p radioactivity half-lives of the two nuclei is determined as approximately 10 ^{-18} s.

    Finally, it is necessary to note that two-neutron ( 2n ) radioactivity has been an attractive subject in recent years [115119]. Therefore, it is interesting to explore the tensor force and pairing correlation effects on the 2n halo and 2n radioactivity within the Skyrme energy density functional, which is underway.

    We thank professor Jianmin Dong, professor Ligang Cao, professor Shisheng Zhang, and the anonymous reviewers for helpful suggestions and comments.

    [1] Y. B. Zel'dovich, Sov. Phys.-JETP 11, 812 (1960)
    [2] V. I. Goldansky, Nucl. Phys. 19, 482 (1960) doi: 10.1016/0029-5582(60)90258-3
    [3] V. I. Goldansky, Nucl. Phys. 27, 648 (1961) doi: 10.1016/0029-5582(61)90309-1
    [4] M. Pfützner, M. Karny, L. Grigorenko et al., Rev. Mod. Phys. 84, 567 (2012) doi: 10.1103/RevModPhys.84.567
    [5] M. Pfützner, E. Badura, C. Bingham et al., Eur. Phys. J. A 14, 279 (2002) doi: 10.1140/epja/i2002-10033-9
    [6] J. Giovinazzo, B. Blank, M. Chartier et al., Phys. Rev. Lett. 89, 102501 (2002) doi: 10.1103/PhysRevLett.89.102501
    [7] C. Dossat, A. Bey, B. Blank et al., Phys. Rev. C 72, 054315 (2005) doi: 10.1103/PhysRevC.72.054315
    [8] B. Blank, A. Bey, G. Canchel et al., Phys. Rev. Lett. 94, 232501 (2005) doi: 10.1103/PhysRevLett.94.232501
    [9] T. Goigoux, P. Ascher, B. Blank et al., Phys. Rev. Lett. 117, 162501 (2016) doi: 10.1103/PhysRevLett.117.162501
    [10] W. Whaling, Phys. Rev. C 150, 836 (1966) doi: 10.1103/PhysRev.150.836
    [11] G. J. KeKelis, M. S. Zisman, D. K. Scott et al., Phys. Rev. C 17, 1929 (1978) doi: 10.1103/PhysRevC.17.1929
    [12] A. Azhari, R. Kryger and M. Thoennessen, Phys. Rev. C 58, 2568 (1998) doi: 10.1103/PhysRevC.58.2568
    [13] C. J. Woodward, R. E. Tribble, and D. M. Tanner, Phys. Rev. C 27, 27 (1983) doi: 10.1103/PhysRevC.27.27
    [14] I. Mukha, K. Sümmerer, L. Acosta et al., Phys. Rev. Lett. 99, 182501 (2007) doi: 10.1103/PhysRevLett.99.182501
    [15] I. Mukha, L. V. Grigorenko, X. Xu et al., Phys. Rev. Lett. 115, 202501 (2015) doi: 10.1103/PhysRevLett.115.202501
    [16] J. Jänecke, Nucl. Phys. 61, 326 (1965) doi: 10.1016/0029-5582(65)90907-7
    [17] B. A. Brown, Phys. Rev. C 43, R1513 (1991) doi: 10.1103/PhysRevC.43.R1513
    [18] W. Nazarewicz, J. Dobaczewski, T. R. Werner et al., Phys. Rev. C 53, 740 (1996) doi: 10.1103/PhysRevC.53.740
    [19] W. E. Ormand, Phys. Rev. C 55, 2407 (1997) doi: 10.1103/PhysRevC.55.2407
    [20] F. C. Barker, Phys. Rev. C 63, 047303 (2001) doi: 10.1103/PhysRevC.63.047303
    [21] B. A. Brown and F. C. Barker, Phys. Rev. C 67, 041304 (2003) doi: 10.1103/PhysRevC.67.041304
    [22] L. V. Grigorenko and M. V. Zhukov, Phys. Rev. C 76, 014008 (2007) doi: 10.1103/PhysRevC.76.014008
    [23] D. S. Delion, R. J. Liotta, and R. Wyss, Phys. Rev. C 87, 034328 (2013) doi: 10.1103/PhysRevC.87.034328
    [24] J. Rotureau, J. Okolowicz, and M. Ploszajczak, Nucl. Phys. A 767, 13 (2006) doi: 10.1016/j.nuclphysa.2005.12.005
    [25] M. Gonalves, N. Teruya, O. Tavares et al., Phys. Lett. B 774, 14 (2017) doi: 10.1016/j.physletb.2017.09.032
    [26] J. P. Cui, Y. H. Gao, Y. Z. Wang et al., Phys. Rev. C 101, 014301 (2020) [Erratum: Phys. Rev. C 104, 029902(E) (2021)]
    [27] Y. Z. Wang, J. P. Cui, Y. H. Gao et al., Commun. Theor. Phys. 73, 075301 (2021) doi: 10.1088/1572-9494/abfa00
    [28] F. Z. Xing, J. P. Cui, Y. Z. Wang et al., Chin. Phys. C 45, 124105 (2021) doi: 10.1088/1674-1137/ac2425
    [29] H. M. Liu, Y. T. Zou, P. Xiao et al., Chin. Phys. C 45, 024108 (2021) doi: 10.1088/1674-1137/abd01e
    [30] D. Q. Fang and Y. G. Ma, Chin. Sci. Bull. 65, 4018 (2020) doi: 10.1360/TB-2020-0423
    [31] L. Zhou, S. M. Wang, D. Q. Fang et al., Nucl. Sci. Tech. 33, 105 (2022) doi: 10.1007/s41365-022-01091-1
    [32] E. Olsen, M. Pfützner, N. Birge et al., Phys. Rev. Lett. 110, 222501 (2013); [Erratum: Phys. Rev. Lett. 111, 139903 (2013)]
    [33] B. Blank and M. Ploszajczak, Rep. Prog. Phys. 71, 046301 (2008) doi: 10.1088/0034-4885/71/4/046301
    [34] B. Blank and M. J. G. Borge, Prog. Part. Nucl. Phys. 60, 403 (2008) doi: 10.1016/j.ppnp.2007.12.001
    [35] V. Galitsky and V. Cheltsov, Nucl. Phys. 56, 86 (1964) doi: 10.1016/0029-5582(64)90455-9
    [36] B. V. Danilin and M. V. Zhukov, Phys. At. Nucl. 56, 460 (1993)
    [37] L. V. Grigorenko, R. C. Johnson, I. G. Mukha, et al., Phys. Rev. Lett. 85, 22 (2000) doi: 10.1103/PhysRevLett.85.22
    [38] V. Vasilevsky, A. Nesterov, F. Arickx, et al., Phys. Rev. C 63, 034607 (2001) doi: 10.1103/PhysRevC.63.034607
    [39] L. V. Grigorenko, I. G. Mukha, I. J. Thompson, et al., Phys. Rev. Lett. 88, 042502 (2002) doi: 10.1103/PhysRevLett.88.042502
    [40] L. V. Grigorenko and M. V. Zhukov, Phys. Rev. C 68, 054005 (2003) doi: 10.1103/PhysRevC.68.054005
    [41] P. Descouvemont, E. Tursunov, and D. Baye, Nucl. Phys. A 765, 370 (2006) doi: 10.1016/j.nuclphysa.2005.11.010
    [42] E. Garrido, A. Jensen, and D. Fedorov, Phys. Rev. C 78, 034004 (2008) doi: 10.1103/PhysRevC.78.034004
    [43] R. Álvarez-Rodríguez, A. S. Jensen, E. Garrido, et al., Phys. Rev. C 77, 064305 (2008) doi: 10.1103/PhysRevC.77.064305
    [44] R. Álvarez-Rodríguez, A. S. Jensen, E. Garrido, et al., Phys. Rev. C 82, 034001 (2010) doi: 10.1103/PhysRevC.82.034001
    [45] B. Blank, P. Ascher, L. Audirac et al., Acta Phys. Pol. B 42, 545 (2011) doi: 10.5506/APhysPolB.42.545
    [46] R. Kanungo, Phys. Lett. B 649, 31 (2007) doi: 10.1016/j.physletb.2007.03.044
    [47] H. Y. Zhang, W. Q. Shen, Z. Z. Ren et al., Nucl. Phys. A 722, 518c (2003) doi: 10.1016/S0375-9474(03)01419-2
    [48] Koichi Sato and Nobuo Hinohara, Nucl. Phys. A 849, 53 (2011) doi: 10.1016/j.nuclphysa.2010.11.003
    [49] S. Typel and G. Baur, Nucl. Phys. A 759, 247 (2005) doi: 10.1016/j.nuclphysa.2005.05.145
    [50] Emil Ryberg, Christian Forssén, H.-W. Hammer, et al., Phys. Rev. C 89, 014325 (2014) doi: 10.1103/PhysRevC.89.014325
    [51] M. V. Zhukov and I. J. Thompson, Phys. Rev. C 52, 3505 (1995) doi: 10.1103/PhysRevC.52.3505
    [52] N. Michel, J. G. Li, F. R. Xu, et al., Phys. Rev. C 103, 044319 (2021) doi: 10.1103/PhysRevC.103.044319
    [53] D. Singh and G. Saxena, Int. J. Mod. Phys. E 21, 1250076 (2012) doi: 10.1142/S0218301312500760
    [54] S. S. Zhang, E. G. Zhao, and S. G. Zhou, Eur. Phys. J. A 49, 77 (2013) doi: 10.1140/epja/i2013-13077-8
    [55] L. Liu, S. Liu, S. S. Zhang, et al., Chin. Phys. C 45, 044105 (2021) doi: 10.1088/1674-1137/abdfbc
    [56] G. Saxena, M. Kumawat, M. Kaushik, et al., Phys. Lett. B 775, 126 (2017) doi: 10.1016/j.physletb.2017.10.055
    [57] J. Meng and P. Ring, Phys. Rev. Lett. 77, 3963 (1996) doi: 10.1103/PhysRevLett.77.3963
    [58] J. Meng, H. Toki, J. Y. Zeng et al., Phys. Rev. C 65, 041302(R) (2002) doi: 10.1103/PhysRevC.65.041302
    [59] Y. Zhong, S. S. Zhang, X. X. Sun, et al., Sci. China-Phys. Mech. Astron. 65, 262011 (2022) doi: 10.1007/s11433-022-1894-6
    [60] S. S. Zhang, X. D. Xu, and J. P. Peng, Eur. Phys. J. A 48, 40 (2012) doi: 10.1140/epja/i2012-12040-7
    [61] Shan-Gui Zhou, Jie Meng, P. Ring, et al., Phys. Rev. C 82, 011301(R) (2010) doi: 10.1103/PhysRevC.82.011301
    [62] Wen Hui Long, Peter Ring, Jie Meng, et al., Phys. Rev. C 81, 031302 (2010) doi: 10.1103/PhysRevC.81.031302
    [63] T. Otsuka, T. Suzuki, R. Fujimoto, et al., Phys. Rev. Lett. 95, 232502 (2005) doi: 10.1103/PhysRevLett.95.232502
    [64] S. Shen, H. Liang, J. Meng, et al., Phys. Lett. B 778, 344 (2018) doi: 10.1016/j.physletb.2018.01.058
    [65] T. Otsuka, T. Matsuo, and D. Abe, Phys. Rev. Lett. 97, 162501 (2006) doi: 10.1103/PhysRevLett.97.162501
    [66] J. Geng, J. Xiang, B. Y. Sun et al., Phys. Rev. C 101, 064302 (2020) doi: 10.1103/PhysRevC.101.064302
    [67] T. Lesinski, M. Bender, K. Bennaceur et al., Phys. Rev. C 76, 014312 (2007) doi: 10.1103/PhysRevC.76.014312
    [68] M. Bender, K. Bennaceur, T. Duguet et al., Phys. Rev. C 80, 064302 (2009) doi: 10.1103/PhysRevC.80.064302
    [69] B. A. Brown, T. Duguet, T. Otsuks et al., Phys. Rev. C 74, 061303 (R) (2006) doi: 10.1103/PhysRevC.74.061303
    [70] G. Coló, H. Sagawa, S. Fracasso, et al., Phys. Lett. B 646, 227 (2007) doi: 10.1016/j.physletb.2007.01.033
    [71] D. M. Brink and F. Stancu, Phys. Rev. C 75, 064311 (2007) doi: 10.1103/PhysRevC.75.064311
    [72] M. Zalewski, J. Dobaczewski, W. Satula et al., Phys. Rev. C 77, 024316 (2008) doi: 10.1103/PhysRevC.77.024316
    [73] L. G. Cao, G. Coló, H. Sagawa, et al., Phys. Rev. C 80, 064304 (2009) doi: 10.1103/PhysRevC.80.064304
    [74] L. G. Cao, G. Coló, and H. Sagawa, Phys. Rev. C 81, 044302 (2010) doi: 10.1103/PhysRevC.81.044302
    [75] C. L. Bai, H. Q. Zhang, H. Sagawa, et al., Phys. Rev. Lett. 105, 072501 (2010) doi: 10.1103/PhysRevLett.105.072501
    [76] Y. Z. Wang, J. Z. Gu, J. M. Dong et al., Phys. Rev. C 83, 054305 (2011) doi: 10.1103/PhysRevC.83.054305
    [77] Y. Z. Wang, J. Z. Gu, X. Z. Zhang, et al., Phys. Rev. C 84, 044333 (2011) doi: 10.1103/PhysRevC.84.044333
    [78] X. R. Zhou and H. Sagawa, J. Phys. G: Nucl. Part. Phys. 39, 085104 (2012) doi: 10.1088/0954-3899/39/8/085104
    [79] M. Grasso and M. Anguiano, Phys. Rev. C. 88, 054328 (2013) doi: 10.1103/PhysRevC.88.054328
    [80] Christian Beck, Clusters in Nuclei, Vol. 1 (Springer-Verlag, Berlin, Heidelberg, 2010), chap. 5.
    [81] Y. Z. Wang, X. D. Su, C. Qi, et al., Chin. Phys. C 43, 114101 (2019) doi: 10.1088/1674-1137/43/11/114101
    [82] K. Bennaceur, J. Dobaczewski, and M. Ploszajczak, Phys. Lett. B 496, 154 (2000) doi: 10.1016/S0370-2693(00)01292-2
    [83] J. Dobaczewski, W. Nazarewicz, and P.-G. Reinhard, Nucl. Phys. A 693, 361 (2001) doi: 10.1016/S0375-9474(01)00993-9
    [84] Y. Zhang, M. Matsuo, and J. Meng, Phys. Rev. C 86, 054318 (2012) doi: 10.1103/PhysRevC.86.054318
    [85] P. Bonche, H. Flocard, and P. H. Heenen, Comput. Phys. Commun. 171, 49 (2005) doi: 10.1016/j.cpc.2005.05.001
    [86] K. Bennaceur and J. Dobaczewski, Comput. Phys. Commun. 168, 96 (2005) doi: 10.1016/j.cpc.2005.02.002
    [87] J. Dobaczewski, W. Satula, B. G. Carlsson et al., Comput. Phys. Commum. 180, 2361 (2009) doi: 10.1016/j.cpc.2009.08.009
    [88] M. V. Stoitsov, N. Schunck, M. Kortelainen et al., Comput. Phys. Commun. 184, 1592 (2013) doi: 10.1016/j.cpc.2013.01.013
    [89] R. B. Wiringa, V. G. J. Stoks, and R. Schiavilla, Phys. Rev. C 51, 38 (1995) doi: 10.1103/PhysRevC.51.38
    [90] V. G. J. Stoks, R. A. M. Klomp, C. P. F. Treheggen et al., Phys. Rev. C 49, 2950 (1994) doi: 10.1103/PhysRevC.49.2950
    [91] R. Machleidt, F. Sammarruca, and Y. Song, Phys. Rev. C 53, 1483 (1996) doi: 10.1103/PhysRevC.53.R1483
    [92] D. Vretenar, A. V. Afanasjev, G. A. Lalazissis, et al., Phys. Rep. 409, 101 (2005) doi: 10.1016/j.physrep.2004.10.001
    [93] W. Long, J. Meng, N. Van Giai, et al., Phys. Rev. C 69, 034319 (2004) doi: 10.1103/PhysRevC.69.034319
    [94] W. H. Long, N. Van Giai, and J. Meng, Phys. Lett. B 640, 150 (2006) doi: 10.1016/j.physletb.2006.07.064
    [95] W. Long, H. Sagawa, J. Meng, et al., Europhys. Lett. 82, 12001 (2008) doi: 10.1209/0295-5075/82/12001
    [96] E. Epelbaum, H.-W. Hammer, and Ulf-G. Meiβner, Rev. Mod. Phys. 81, 1773 (2009) doi: 10.1103/RevModPhys.81.1773
    [97] R. Machleidt and D. R. Entem, Phys. Rep. 503, 1 (2011) doi: 10.1016/j.physrep.2011.02.001
    [98] M. Wang, W. J. Huang, F. G. Kondev, et al., Chin. Phys. C 45, 030003 (2021) doi: 10.1088/1674-1137/abddaf
    [99] Y. Jin, C. Y. Niu, K. W. Brown et al., Phys. Rev. Lett. 127, 262502 (2021) doi: 10.1103/PhysRevLett.127.262502
    [100] R. Kanungo, M. Chiba, S. Adhikari et al., Phys. Lett. B 571, 21 (2003) doi: 10.1016/j.physletb.2003.07.050
    [101] L. V. Grigorenko, Yu. L. Parfenova, and M. V. Zhukov, Phys. Rev. C 71, 051604(R) (2005) doi: 10.1103/PhysRevC.71.051604
    [102] X. X. Xu, C. J. Lin, H. M. Jia et al., Phys. Lett. B 727, 126 (2013) doi: 10.1016/j.physletb.2013.10.029
    [103] C. J. Lin, X. X. Xu, H. M. Jia et al., Phys. Rev. C 80, 014310 (2009) doi: 10.1103/PhysRevC.80.014310
    [104] X. X. Xu, C. J. Lin, H. M. Jia et al., Phys. Rev. C 81, 054317 (2010) doi: 10.1103/PhysRevC.81.054317
    [105] C. J. Lin, X. X. Xu, J. S. Wang et al., Nucl. Phys. Rev. 33, 160 (2016) doi: 10.11804/NuclPhysRev.33.02.160
    [106] I. Angeli and K. P. Marinova, At. Data Nucl. Data Tables 99, 69 (2013) doi: 10.1016/j.adt.2011.12.006
    [107] F. Z. Xing, J. P. Cui, Y. Z. Wang, et al., Acta Phys. Sin. 71, 062301 (2022) doi: 10.7498/aps.71.20211839
    [108] Y. Z. Wang, S. J. Wang, Z. Y. Hou et al., Phys. Rev. C 92, 064301 (2015) doi: 10.1103/PhysRevC.92.064301
    [109] Y. Z. Wang, F. Z. Xing, Y. Xiao, et al., Chin. Phys. C 45, 044111 (2021) doi: 10.1088/1674-1137/abe112
    [110] J. P. Cui, Y. H. Gao, Y. Z. Wang, et al., Nucl. Phys. A 1017, 122341 (2022) doi: 10.1016/j.nuclphysa.2021.122341
    [111] F. Z. Xing, H. Qi, J. P. Cui et al., Nucl. Phys. A 1028, 122528 (2022) doi: 10.1016/j.nuclphysa.2022.122528
    [112] G. Royer, Nucl. Phys. A 848, 279 (2010) doi: 10.1016/j.nuclphysa.2010.09.009
    [113] Y. G. Ma and H. W. Zhao, Sci. Sin.-Phys. Mech. Astron. 50, 112001 (2020)
    [114] J. C. Yang, J. W. Xia, G. Q. Xiao et al., Nucl. Instr. Meth. B 317, 263 (2013) doi: 10.1016/j.nimb.2013.08.046
    [115] A. Spyrou, Z. Kohley, T. Baumann et al., Phys. Rev. Lett. 108, 102501 (2012) doi: 10.1103/PhysRevLett.108.102501
    [116] Z. Kohley, T. Baumann, D. Bazin et al., Phys. Rev. Lett. 110, 152501 (2013) doi: 10.1103/PhysRevLett.110.152501
    [117] L. V. Grigorenko, I. G. Mukha, and M. V. Zhukov, Phys. Rev. Lett. 111, 042501 (2013) doi: 10.1103/PhysRevLett.111.042501
    [118] K. Hagino and H. Sagawa, Phys. Rev. C. 89, 014331 (2014) doi: 10.1103/PhysRevC.89.014331
    [119] M. D. Jones, N. Frank, T. Baumann et al., Phys. Rev. C 92, 051306(R) (2015) doi: 10.1103/PhysRevC.92.051306
  • [1] Y. B. Zel'dovich, Sov. Phys.-JETP 11, 812 (1960)
    [2] V. I. Goldansky, Nucl. Phys. 19, 482 (1960) doi: 10.1016/0029-5582(60)90258-3
    [3] V. I. Goldansky, Nucl. Phys. 27, 648 (1961) doi: 10.1016/0029-5582(61)90309-1
    [4] M. Pfützner, M. Karny, L. Grigorenko et al., Rev. Mod. Phys. 84, 567 (2012) doi: 10.1103/RevModPhys.84.567
    [5] M. Pfützner, E. Badura, C. Bingham et al., Eur. Phys. J. A 14, 279 (2002) doi: 10.1140/epja/i2002-10033-9
    [6] J. Giovinazzo, B. Blank, M. Chartier et al., Phys. Rev. Lett. 89, 102501 (2002) doi: 10.1103/PhysRevLett.89.102501
    [7] C. Dossat, A. Bey, B. Blank et al., Phys. Rev. C 72, 054315 (2005) doi: 10.1103/PhysRevC.72.054315
    [8] B. Blank, A. Bey, G. Canchel et al., Phys. Rev. Lett. 94, 232501 (2005) doi: 10.1103/PhysRevLett.94.232501
    [9] T. Goigoux, P. Ascher, B. Blank et al., Phys. Rev. Lett. 117, 162501 (2016) doi: 10.1103/PhysRevLett.117.162501
    [10] W. Whaling, Phys. Rev. C 150, 836 (1966) doi: 10.1103/PhysRev.150.836
    [11] G. J. KeKelis, M. S. Zisman, D. K. Scott et al., Phys. Rev. C 17, 1929 (1978) doi: 10.1103/PhysRevC.17.1929
    [12] A. Azhari, R. Kryger and M. Thoennessen, Phys. Rev. C 58, 2568 (1998) doi: 10.1103/PhysRevC.58.2568
    [13] C. J. Woodward, R. E. Tribble, and D. M. Tanner, Phys. Rev. C 27, 27 (1983) doi: 10.1103/PhysRevC.27.27
    [14] I. Mukha, K. Sümmerer, L. Acosta et al., Phys. Rev. Lett. 99, 182501 (2007) doi: 10.1103/PhysRevLett.99.182501
    [15] I. Mukha, L. V. Grigorenko, X. Xu et al., Phys. Rev. Lett. 115, 202501 (2015) doi: 10.1103/PhysRevLett.115.202501
    [16] J. Jänecke, Nucl. Phys. 61, 326 (1965) doi: 10.1016/0029-5582(65)90907-7
    [17] B. A. Brown, Phys. Rev. C 43, R1513 (1991) doi: 10.1103/PhysRevC.43.R1513
    [18] W. Nazarewicz, J. Dobaczewski, T. R. Werner et al., Phys. Rev. C 53, 740 (1996) doi: 10.1103/PhysRevC.53.740
    [19] W. E. Ormand, Phys. Rev. C 55, 2407 (1997) doi: 10.1103/PhysRevC.55.2407
    [20] F. C. Barker, Phys. Rev. C 63, 047303 (2001) doi: 10.1103/PhysRevC.63.047303
    [21] B. A. Brown and F. C. Barker, Phys. Rev. C 67, 041304 (2003) doi: 10.1103/PhysRevC.67.041304
    [22] L. V. Grigorenko and M. V. Zhukov, Phys. Rev. C 76, 014008 (2007) doi: 10.1103/PhysRevC.76.014008
    [23] D. S. Delion, R. J. Liotta, and R. Wyss, Phys. Rev. C 87, 034328 (2013) doi: 10.1103/PhysRevC.87.034328
    [24] J. Rotureau, J. Okolowicz, and M. Ploszajczak, Nucl. Phys. A 767, 13 (2006) doi: 10.1016/j.nuclphysa.2005.12.005
    [25] M. Gonalves, N. Teruya, O. Tavares et al., Phys. Lett. B 774, 14 (2017) doi: 10.1016/j.physletb.2017.09.032
    [26] J. P. Cui, Y. H. Gao, Y. Z. Wang et al., Phys. Rev. C 101, 014301 (2020) [Erratum: Phys. Rev. C 104, 029902(E) (2021)]
    [27] Y. Z. Wang, J. P. Cui, Y. H. Gao et al., Commun. Theor. Phys. 73, 075301 (2021) doi: 10.1088/1572-9494/abfa00
    [28] F. Z. Xing, J. P. Cui, Y. Z. Wang et al., Chin. Phys. C 45, 124105 (2021) doi: 10.1088/1674-1137/ac2425
    [29] H. M. Liu, Y. T. Zou, P. Xiao et al., Chin. Phys. C 45, 024108 (2021) doi: 10.1088/1674-1137/abd01e
    [30] D. Q. Fang and Y. G. Ma, Chin. Sci. Bull. 65, 4018 (2020) doi: 10.1360/TB-2020-0423
    [31] L. Zhou, S. M. Wang, D. Q. Fang et al., Nucl. Sci. Tech. 33, 105 (2022) doi: 10.1007/s41365-022-01091-1
    [32] E. Olsen, M. Pfützner, N. Birge et al., Phys. Rev. Lett. 110, 222501 (2013); [Erratum: Phys. Rev. Lett. 111, 139903 (2013)]
    [33] B. Blank and M. Ploszajczak, Rep. Prog. Phys. 71, 046301 (2008) doi: 10.1088/0034-4885/71/4/046301
    [34] B. Blank and M. J. G. Borge, Prog. Part. Nucl. Phys. 60, 403 (2008) doi: 10.1016/j.ppnp.2007.12.001
    [35] V. Galitsky and V. Cheltsov, Nucl. Phys. 56, 86 (1964) doi: 10.1016/0029-5582(64)90455-9
    [36] B. V. Danilin and M. V. Zhukov, Phys. At. Nucl. 56, 460 (1993)
    [37] L. V. Grigorenko, R. C. Johnson, I. G. Mukha, et al., Phys. Rev. Lett. 85, 22 (2000) doi: 10.1103/PhysRevLett.85.22
    [38] V. Vasilevsky, A. Nesterov, F. Arickx, et al., Phys. Rev. C 63, 034607 (2001) doi: 10.1103/PhysRevC.63.034607
    [39] L. V. Grigorenko, I. G. Mukha, I. J. Thompson, et al., Phys. Rev. Lett. 88, 042502 (2002) doi: 10.1103/PhysRevLett.88.042502
    [40] L. V. Grigorenko and M. V. Zhukov, Phys. Rev. C 68, 054005 (2003) doi: 10.1103/PhysRevC.68.054005
    [41] P. Descouvemont, E. Tursunov, and D. Baye, Nucl. Phys. A 765, 370 (2006) doi: 10.1016/j.nuclphysa.2005.11.010
    [42] E. Garrido, A. Jensen, and D. Fedorov, Phys. Rev. C 78, 034004 (2008) doi: 10.1103/PhysRevC.78.034004
    [43] R. Álvarez-Rodríguez, A. S. Jensen, E. Garrido, et al., Phys. Rev. C 77, 064305 (2008) doi: 10.1103/PhysRevC.77.064305
    [44] R. Álvarez-Rodríguez, A. S. Jensen, E. Garrido, et al., Phys. Rev. C 82, 034001 (2010) doi: 10.1103/PhysRevC.82.034001
    [45] B. Blank, P. Ascher, L. Audirac et al., Acta Phys. Pol. B 42, 545 (2011) doi: 10.5506/APhysPolB.42.545
    [46] R. Kanungo, Phys. Lett. B 649, 31 (2007) doi: 10.1016/j.physletb.2007.03.044
    [47] H. Y. Zhang, W. Q. Shen, Z. Z. Ren et al., Nucl. Phys. A 722, 518c (2003) doi: 10.1016/S0375-9474(03)01419-2
    [48] Koichi Sato and Nobuo Hinohara, Nucl. Phys. A 849, 53 (2011) doi: 10.1016/j.nuclphysa.2010.11.003
    [49] S. Typel and G. Baur, Nucl. Phys. A 759, 247 (2005) doi: 10.1016/j.nuclphysa.2005.05.145
    [50] Emil Ryberg, Christian Forssén, H.-W. Hammer, et al., Phys. Rev. C 89, 014325 (2014) doi: 10.1103/PhysRevC.89.014325
    [51] M. V. Zhukov and I. J. Thompson, Phys. Rev. C 52, 3505 (1995) doi: 10.1103/PhysRevC.52.3505
    [52] N. Michel, J. G. Li, F. R. Xu, et al., Phys. Rev. C 103, 044319 (2021) doi: 10.1103/PhysRevC.103.044319
    [53] D. Singh and G. Saxena, Int. J. Mod. Phys. E 21, 1250076 (2012) doi: 10.1142/S0218301312500760
    [54] S. S. Zhang, E. G. Zhao, and S. G. Zhou, Eur. Phys. J. A 49, 77 (2013) doi: 10.1140/epja/i2013-13077-8
    [55] L. Liu, S. Liu, S. S. Zhang, et al., Chin. Phys. C 45, 044105 (2021) doi: 10.1088/1674-1137/abdfbc
    [56] G. Saxena, M. Kumawat, M. Kaushik, et al., Phys. Lett. B 775, 126 (2017) doi: 10.1016/j.physletb.2017.10.055
    [57] J. Meng and P. Ring, Phys. Rev. Lett. 77, 3963 (1996) doi: 10.1103/PhysRevLett.77.3963
    [58] J. Meng, H. Toki, J. Y. Zeng et al., Phys. Rev. C 65, 041302(R) (2002) doi: 10.1103/PhysRevC.65.041302
    [59] Y. Zhong, S. S. Zhang, X. X. Sun, et al., Sci. China-Phys. Mech. Astron. 65, 262011 (2022) doi: 10.1007/s11433-022-1894-6
    [60] S. S. Zhang, X. D. Xu, and J. P. Peng, Eur. Phys. J. A 48, 40 (2012) doi: 10.1140/epja/i2012-12040-7
    [61] Shan-Gui Zhou, Jie Meng, P. Ring, et al., Phys. Rev. C 82, 011301(R) (2010) doi: 10.1103/PhysRevC.82.011301
    [62] Wen Hui Long, Peter Ring, Jie Meng, et al., Phys. Rev. C 81, 031302 (2010) doi: 10.1103/PhysRevC.81.031302
    [63] T. Otsuka, T. Suzuki, R. Fujimoto, et al., Phys. Rev. Lett. 95, 232502 (2005) doi: 10.1103/PhysRevLett.95.232502
    [64] S. Shen, H. Liang, J. Meng, et al., Phys. Lett. B 778, 344 (2018) doi: 10.1016/j.physletb.2018.01.058
    [65] T. Otsuka, T. Matsuo, and D. Abe, Phys. Rev. Lett. 97, 162501 (2006) doi: 10.1103/PhysRevLett.97.162501
    [66] J. Geng, J. Xiang, B. Y. Sun et al., Phys. Rev. C 101, 064302 (2020) doi: 10.1103/PhysRevC.101.064302
    [67] T. Lesinski, M. Bender, K. Bennaceur et al., Phys. Rev. C 76, 014312 (2007) doi: 10.1103/PhysRevC.76.014312
    [68] M. Bender, K. Bennaceur, T. Duguet et al., Phys. Rev. C 80, 064302 (2009) doi: 10.1103/PhysRevC.80.064302
    [69] B. A. Brown, T. Duguet, T. Otsuks et al., Phys. Rev. C 74, 061303 (R) (2006) doi: 10.1103/PhysRevC.74.061303
    [70] G. Coló, H. Sagawa, S. Fracasso, et al., Phys. Lett. B 646, 227 (2007) doi: 10.1016/j.physletb.2007.01.033
    [71] D. M. Brink and F. Stancu, Phys. Rev. C 75, 064311 (2007) doi: 10.1103/PhysRevC.75.064311
    [72] M. Zalewski, J. Dobaczewski, W. Satula et al., Phys. Rev. C 77, 024316 (2008) doi: 10.1103/PhysRevC.77.024316
    [73] L. G. Cao, G. Coló, H. Sagawa, et al., Phys. Rev. C 80, 064304 (2009) doi: 10.1103/PhysRevC.80.064304
    [74] L. G. Cao, G. Coló, and H. Sagawa, Phys. Rev. C 81, 044302 (2010) doi: 10.1103/PhysRevC.81.044302
    [75] C. L. Bai, H. Q. Zhang, H. Sagawa, et al., Phys. Rev. Lett. 105, 072501 (2010) doi: 10.1103/PhysRevLett.105.072501
    [76] Y. Z. Wang, J. Z. Gu, J. M. Dong et al., Phys. Rev. C 83, 054305 (2011) doi: 10.1103/PhysRevC.83.054305
    [77] Y. Z. Wang, J. Z. Gu, X. Z. Zhang, et al., Phys. Rev. C 84, 044333 (2011) doi: 10.1103/PhysRevC.84.044333
    [78] X. R. Zhou and H. Sagawa, J. Phys. G: Nucl. Part. Phys. 39, 085104 (2012) doi: 10.1088/0954-3899/39/8/085104
    [79] M. Grasso and M. Anguiano, Phys. Rev. C. 88, 054328 (2013) doi: 10.1103/PhysRevC.88.054328
    [80] Christian Beck, Clusters in Nuclei, Vol. 1 (Springer-Verlag, Berlin, Heidelberg, 2010), chap. 5.
    [81] Y. Z. Wang, X. D. Su, C. Qi, et al., Chin. Phys. C 43, 114101 (2019) doi: 10.1088/1674-1137/43/11/114101
    [82] K. Bennaceur, J. Dobaczewski, and M. Ploszajczak, Phys. Lett. B 496, 154 (2000) doi: 10.1016/S0370-2693(00)01292-2
    [83] J. Dobaczewski, W. Nazarewicz, and P.-G. Reinhard, Nucl. Phys. A 693, 361 (2001) doi: 10.1016/S0375-9474(01)00993-9
    [84] Y. Zhang, M. Matsuo, and J. Meng, Phys. Rev. C 86, 054318 (2012) doi: 10.1103/PhysRevC.86.054318
    [85] P. Bonche, H. Flocard, and P. H. Heenen, Comput. Phys. Commun. 171, 49 (2005) doi: 10.1016/j.cpc.2005.05.001
    [86] K. Bennaceur and J. Dobaczewski, Comput. Phys. Commun. 168, 96 (2005) doi: 10.1016/j.cpc.2005.02.002
    [87] J. Dobaczewski, W. Satula, B. G. Carlsson et al., Comput. Phys. Commum. 180, 2361 (2009) doi: 10.1016/j.cpc.2009.08.009
    [88] M. V. Stoitsov, N. Schunck, M. Kortelainen et al., Comput. Phys. Commun. 184, 1592 (2013) doi: 10.1016/j.cpc.2013.01.013
    [89] R. B. Wiringa, V. G. J. Stoks, and R. Schiavilla, Phys. Rev. C 51, 38 (1995) doi: 10.1103/PhysRevC.51.38
    [90] V. G. J. Stoks, R. A. M. Klomp, C. P. F. Treheggen et al., Phys. Rev. C 49, 2950 (1994) doi: 10.1103/PhysRevC.49.2950
    [91] R. Machleidt, F. Sammarruca, and Y. Song, Phys. Rev. C 53, 1483 (1996) doi: 10.1103/PhysRevC.53.R1483
    [92] D. Vretenar, A. V. Afanasjev, G. A. Lalazissis, et al., Phys. Rep. 409, 101 (2005) doi: 10.1016/j.physrep.2004.10.001
    [93] W. Long, J. Meng, N. Van Giai, et al., Phys. Rev. C 69, 034319 (2004) doi: 10.1103/PhysRevC.69.034319
    [94] W. H. Long, N. Van Giai, and J. Meng, Phys. Lett. B 640, 150 (2006) doi: 10.1016/j.physletb.2006.07.064
    [95] W. Long, H. Sagawa, J. Meng, et al., Europhys. Lett. 82, 12001 (2008) doi: 10.1209/0295-5075/82/12001
    [96] E. Epelbaum, H.-W. Hammer, and Ulf-G. Meiβner, Rev. Mod. Phys. 81, 1773 (2009) doi: 10.1103/RevModPhys.81.1773
    [97] R. Machleidt and D. R. Entem, Phys. Rep. 503, 1 (2011) doi: 10.1016/j.physrep.2011.02.001
    [98] M. Wang, W. J. Huang, F. G. Kondev, et al., Chin. Phys. C 45, 030003 (2021) doi: 10.1088/1674-1137/abddaf
    [99] Y. Jin, C. Y. Niu, K. W. Brown et al., Phys. Rev. Lett. 127, 262502 (2021) doi: 10.1103/PhysRevLett.127.262502
    [100] R. Kanungo, M. Chiba, S. Adhikari et al., Phys. Lett. B 571, 21 (2003) doi: 10.1016/j.physletb.2003.07.050
    [101] L. V. Grigorenko, Yu. L. Parfenova, and M. V. Zhukov, Phys. Rev. C 71, 051604(R) (2005) doi: 10.1103/PhysRevC.71.051604
    [102] X. X. Xu, C. J. Lin, H. M. Jia et al., Phys. Lett. B 727, 126 (2013) doi: 10.1016/j.physletb.2013.10.029
    [103] C. J. Lin, X. X. Xu, H. M. Jia et al., Phys. Rev. C 80, 014310 (2009) doi: 10.1103/PhysRevC.80.014310
    [104] X. X. Xu, C. J. Lin, H. M. Jia et al., Phys. Rev. C 81, 054317 (2010) doi: 10.1103/PhysRevC.81.054317
    [105] C. J. Lin, X. X. Xu, J. S. Wang et al., Nucl. Phys. Rev. 33, 160 (2016) doi: 10.11804/NuclPhysRev.33.02.160
    [106] I. Angeli and K. P. Marinova, At. Data Nucl. Data Tables 99, 69 (2013) doi: 10.1016/j.adt.2011.12.006
    [107] F. Z. Xing, J. P. Cui, Y. Z. Wang, et al., Acta Phys. Sin. 71, 062301 (2022) doi: 10.7498/aps.71.20211839
    [108] Y. Z. Wang, S. J. Wang, Z. Y. Hou et al., Phys. Rev. C 92, 064301 (2015) doi: 10.1103/PhysRevC.92.064301
    [109] Y. Z. Wang, F. Z. Xing, Y. Xiao, et al., Chin. Phys. C 45, 044111 (2021) doi: 10.1088/1674-1137/abe112
    [110] J. P. Cui, Y. H. Gao, Y. Z. Wang, et al., Nucl. Phys. A 1017, 122341 (2022) doi: 10.1016/j.nuclphysa.2021.122341
    [111] F. Z. Xing, H. Qi, J. P. Cui et al., Nucl. Phys. A 1028, 122528 (2022) doi: 10.1016/j.nuclphysa.2022.122528
    [112] G. Royer, Nucl. Phys. A 848, 279 (2010) doi: 10.1016/j.nuclphysa.2010.09.009
    [113] Y. G. Ma and H. W. Zhao, Sci. Sin.-Phys. Mech. Astron. 50, 112001 (2020)
    [114] J. C. Yang, J. W. Xia, G. Q. Xiao et al., Nucl. Instr. Meth. B 317, 263 (2013) doi: 10.1016/j.nimb.2013.08.046
    [115] A. Spyrou, Z. Kohley, T. Baumann et al., Phys. Rev. Lett. 108, 102501 (2012) doi: 10.1103/PhysRevLett.108.102501
    [116] Z. Kohley, T. Baumann, D. Bazin et al., Phys. Rev. Lett. 110, 152501 (2013) doi: 10.1103/PhysRevLett.110.152501
    [117] L. V. Grigorenko, I. G. Mukha, and M. V. Zhukov, Phys. Rev. Lett. 111, 042501 (2013) doi: 10.1103/PhysRevLett.111.042501
    [118] K. Hagino and H. Sagawa, Phys. Rev. C. 89, 014331 (2014) doi: 10.1103/PhysRevC.89.014331
    [119] M. D. Jones, N. Frank, T. Baumann et al., Phys. Rev. C 92, 051306(R) (2015) doi: 10.1103/PhysRevC.92.051306
  • 加载中

Figures(6) / Tables(4)

Get Citation
Yan-Zhao Wang, Feng-Zhu Xing, Jian-Po Cui, Yong-Hao Gao and Jian-Zhong Gu. Roles of tensor force and pairing correlation in two-proton radioactivity of halo nuclei[J]. Chinese Physics C. doi: 10.1088/1674-1137/acd680
Yan-Zhao Wang, Feng-Zhu Xing, Jian-Po Cui, Yong-Hao Gao and Jian-Zhong Gu. Roles of tensor force and pairing correlation in two-proton radioactivity of halo nuclei[J]. Chinese Physics C.  doi: 10.1088/1674-1137/acd680 shu
Milestone
Received: 2023-02-09
Article Metric

Article Views(1463)
PDF Downloads(71)
Cited by(0)
Policy on re-use
To reuse of subscription content published by CPC, the users need to request permission from CPC, unless the content was published under an Open Access license which automatically permits that type of reuse.
通讯作者: 陈斌, bchen63@163.com
  • 1.

    沈阳化工大学材料科学与工程学院 沈阳 110142

  1. 本站搜索
  2. 百度学术搜索
  3. 万方数据库搜索
  4. CNKI搜索

Email This Article

Title:
Email:

Roles of tensor force and pairing correlation in two-proton radioactivity of halo nuclei

  • 1. Department of Mathematics and Physics, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
  • 2. Institute of Applied Physics, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
  • 3. China Institute of Atomic Energy, Beijing 102413, China

Abstract: The tensor force and pairing correlation effects on the two-proton radioactivity of ^{18} Mg and ^{20} Si with a pronounced two-proton halo are explored in the framework of spherical Skyrme-Hartree-Fock-Bogoliubov theory. It is shown that the halo sizes are enhanced with the increase in the strength of the tensor force and pairing correlation. Furthermore, the increasing halo sizes lead to the enhancement of diproton emission. Then, the tensor force is found to have a small influence on the two-proton decay energies, and the two-proton decay energies calculated with strong surface pairing are smaller than those with weak mixed pairing. Because the two-proton decay energies are relatively large, the predicted order of magnitude of half-lives within the effective liquid drop model is not sensitive to the decay energy variation caused by the tensor force and pairing correlation, which has a value of approximately 10 ^{-18} s.

    HTML

    I.   INTRODUCTION
    • In the 1960s, Zel'dovich and Goldansky predicted the possibility of two-proton ( 2p ) radioactivity from the ground state of a nucleus near or beyond the proton drip-line [13]. Goldansky pointed out that the predicted 2p radioactivity half-life was greater than 10^{-12} s, and its decay energy was lower than that of the corresponding one-proton ( 1p ) radioactivity. This type of 2p radioactivity was called true 2p radioactivity [4]. Because of the pairing effect, true 2p radioactivity usually occurs in even-Z nuclei so that the corresponding 1p decay channel is forbidden. Accordingly, true 2p decay energies may have the following features: Q_{2p}>0 and Q_{p}<0 , where Q_{2p} and Q_{p} are the 2p and 1p decay energies, respectively. However, true 2p radioactivity was not observed until 2002 because the production of nuclei near the drip-line is difficult. In 2002, true 2p radioactivity was discovered from ^{45} Fe at the fragment separator of GSI and at the SISSI-LISE3 facility of GANIL [5, 6]; the measured half-lives of the 2p radioactivity were 4.7 _{-1.4}^{+3.4} ms and 3.2 _{-1.0}^{+2.6} ms, respectively. Several years later, more nuclei with true 2p radioactivity were synthesized: ^{48} Ni [7], ^{54} Zn [8], and ^{67} Kr [9]. Meanwhile, the measured 2p decay half-lives of ^{48} Ni, ^{54} Zn, and ^{67} Kr were at the level of ms. To date, 2p radioactivity with long half-lives has only been observed from the above four nuclei. However, 2p radioactivity from the very short-lived nuclear ground states of ^{6} Be [10], ^{12} O [11, 12], ^{16} Ne [11, 13], ^{19} Mg [14], and ^{30} Ar [15] has been observed. The orders of magnitude of the measured 2p decay half-lives were approximately at the level of ps.

      Since the prediction of 2p radioactivity, many models have been proposed to describe its decay properties [1645]. Generally, the 2p radioactivity process can be described by the following three pictures: (i) Diproton (" ^{2} He") emission. A strongly correlated emission of the two protons which, owing to the proton–proton attraction, form an ^{1}S_{0} resonance. Because the proton–proton system is not bound, this diproton structure most likely decays under the Coulomb barrier and two individual protons are observed outside the nucleus [1632]; (ii) “Three-body decay.” Completely uncorrelated emission, where only energy, momentum, and angular momentum conservation have to be respected for simultaneous emission [3045].

      However, the mechanism of 2p radioactivity is not yet clear. It is necessary to study the structure of extremely proton-rich nuclei because 2p radioactivity is strongly dependent on the nuclear structure. Although proton-rich nuclear structures have been investigated using various models [4655], most studies are not directly correlated with the mechanism of 2p radioactivity.

      Recently, Saxena et al. studied the 2p radioactivity of light mass nuclei (A = 18−34) with a 2p halo using the relativistic mean-field plus BCS approach and the macroscopic-microscopic model with the Nillson Strutinsky prescription [56]. It was shown that a 2p halo-like structure is more likely to decay via direct diproton emission. Generally, the formation of a halo can be understood as the scattering of particle pairs into the continuum containing low-lying resonances with small angular momenta by the pairing correlation [5762]. Therefore, the 2p radioactivity of the nuclei with a 2p halo may not only be correlated with the single-particle resonant states in the continuum but also be relevant to the pairing correlation.

      However, in the work of Saxena et al., the tensor force was neglected. Tensor force is the noncentral and nonlocal spin-spin interaction and serves as an important component of the nucleon-nucleon (NN) interaction. It has been introduced into various nuclear models, such as the shell model [63], ab initio approach [64], and self-consistent mean-field theory [6567]. The single-particle state evolutions of exotic nuclei are described successfully when the tensor force is included [6380]. In our previous study, we found that the giant neutron halo of neutron-rich Ca isotopes is suppressed owing to the shift in single-particle resonant orbits in the continuum caused by the tensor force [81]. This drives us to consider whether the low-lying continuum of 2p halo nuclei is influenced by the tensor force and whether 2p radioactivity is further affected. This constitutes the first motivation of this study.

      On the other hand, relevant studies have suggested that the halo is strongly influenced by the pairing correlation [59, 8284]. The large pairing effect on weakly bound neutrons, leading to the pairing anti-halo effect, has been discussed [82]. The influence of pairing interactions on the asymptotic properties of nucleonic distributions has demonstrated that the size of the neutron halo dramatically depends on the behavior of the pairing interaction at low density [83]. However, during a 2p decay process, little is known about the correlation between the two emitted protons. Therefore, it is interesting to study the pairing correlation effect on the 2p radioactivity of nuclei with a 2p halo. This is the second motivation of this study.

      It is well known that Skyrme-Hartree-Fock-Bogoliubov (SHFB) theory is a powerful tool to describe exotic nuclei [8588]. It can provide a unified and self-consistent description of both the mean-field and pairing field in terms of Bogoliubov quasi-particles. Based on the above two motivations and the advantage of SHFB theory, we investigate the tensor force and pairing correlation effects on the 2p radioactivity of 2p halo nuclei in the framework of spherical SHFB theory [8588]. This article is organized as follows. In Sec. II, the theoretical framework is presented, Sec. III presents the calculated results and discussions, and several conclusions are drawn in the final section.

    II.   THEORETICAL FRAMEWORK
    • The fundamental task of nuclear many-body physics is to understand the nuclear structure and reaction using many-body calculations starting from the NN interaction. Usually, the modern NN interaction refers to the bare nuclear force (for instance, Argonne v18(95) [89] and Reid(93) [90]), meson exchange potential [9195], and potential from low-energy quantum chromodynamics via chiral effective field theory [96, 97]. Nevertheless, the phenomenological NN interaction still plays an important role in nuclear many-body calculations. The Skyrme interaction is a kind of phenomenological NN interactions. Many properties of unstable nuclei are described successfully within SHFB theory, including tensor force [8588]. In this section, spherical SHFB theory with the tensor force and the specific investigation procedure of this study are introduced.

    • A.   SHFB theory with tensor force

    • The Skyrme interaction is written as

      \begin{array}{*{20}{l}} V_{\rm Skyrme}=V_{12}+V_{12}^{T}, \end{array}

      (1)

      where V_{12} and V_{12}^{T} denote the usual and tensor force parts of the interaction, respectively.

      The expression for V_{12} is [86]

      \begin{aligned}[b] V_{12} =&t_{0}(1+x_{0}\mathbf{P}_{\sigma })\delta (\mathbf{r}_{1}-\mathbf{r} _{2}) \\ &+\frac{1}{2}t_{1}(1+x_{1}\mathbf{P}_{\sigma })\left[ \mathbf{k}^{{\prime }2}\delta (\mathbf{r}_{1}-\mathbf{r}_{2})+\delta (\mathbf{r}_{1}-\mathbf{r} _{2})\mathbf{k}^{2}\right] \\ &+t_{2}(1+x_{2}\mathbf{P}_{\sigma })\mathbf{k}^{{\prime }}\cdot \delta ( \mathbf{r}_{1}-\mathbf{r}_{2})\mathbf{k}\\ &+\frac{1}{6}t_{3}(1+x_{3}\mathbf{P}_{\sigma })\rho ^{\gamma }\delta ( \mathbf{r}_{1}-\mathbf{r}_{2}) \\ &+ {\rm i} W_{0}(\mathbf{\sigma }_{1}+\mathbf{\sigma }_{2})\cdot \left[ \mathbf{k} ^{{\prime }}\times \delta (\mathbf{r}_{1}-\mathbf{r}_{2})\mathbf{k}\right] ,\end{aligned}

      (2)

      where t_{i} , x_{i} (i =1, 2, 3), and W_{0} are the parameters of the interaction, P_{\sigma } is the spin-exchange operator, and \sigma _{i} are the Pauli matrices. The operator \mathbf{k=(\nabla }_{1}-\mathbf{\nabla }_{2})/2i acts on the right and \mathbf{k}^{{\prime }}\mathbf{=-(\nabla }_{1}-\mathbf{\nabla }_{2})/2i acts on the left.

      V_{12}^{T} can be expressed as [6779]

      \begin{aligned}[b] V_{12}^{T} =&\frac{T}{2}\left[ (\sigma _{1}\cdot \mathbf{k}^{{\prime }})(\sigma _{2}\cdot \mathbf{k}^{{\prime }})-\frac{1}{3}(\sigma _{1}\cdot \sigma _{2})\mathbf{k}^{{\prime }2}\right] \delta (\mathbf{r}_{1}-\mathbf{r} _{2}) \\ &+\frac{T}{2}\delta (\mathbf{r}_{1}-\mathbf{r}_{2})\left[ (\sigma _{1}\cdot \mathbf{k})(\sigma _{2}\cdot \mathbf{k})-\frac{1}{3}(\sigma _{1}\cdot \sigma _{2})\mathbf{k}^{2}\right] \\ &+\frac{U}{2}\Big[ (\sigma _{1}\cdot \mathbf{k}^{{\prime }})\delta ( \mathbf{r}_{1}-\mathbf{r}_{2})(\sigma _{2}\cdot \mathbf{k})+(\sigma _{2}\cdot \mathbf{k}^{{\prime }})\delta (\mathbf{r}_{1}-\mathbf{r} _{2})\\&\times(\sigma _{1}\cdot \mathbf{k})\Big] -\frac{1}{3}U(\sigma _{1}\cdot \sigma _{2})\mathbf{k}^{{\prime }}\cdot \delta (\mathbf{r}_{1}-\mathbf{r}_{2})\mathbf{k}, \end{aligned}

      (3)

      where T and U are the strengths of the triplet-even and triple-odd tensor interactions, respectively.

      In the pairing channel, a density-dependent δ interaction is employed, whose form is

      V_{\rm pair}(\mathbf{r}_{1},\mathbf{r}_{2})=V_{0}\left(1-\eta \frac{\rho (\mathbf{r)} }{\rho _{0}}\right)\delta (\mathbf{r}_{1}-\mathbf{r}_{2}),

      (4)

      where V_{0} denotes the pairing strength. It is determined along with a certain cutoff quasiparticle energy using the mean neutron pairing energy gap of ^{120} Sn (1.31 MeV). Usually, the cutoff quasiparticle energy is taken as 60 MeV. In Eq. (4), \rho (\mathbf{\pmb r}) is the isoscalar local density, and \rho _{0} is the nuclear matter saturation density, fixed at 0.16 fm ^{-3} . The η values are 0 , 0.5 , and 1 for volume, mixed, and surface pairing, respectively.

      The total energy E of a nucleus is the sum of the kinetic, usual Skyrme, pairing, Coulomb, and tensor energies,

      \begin{aligned}[b] E =&K+E_{\rm Skyrme}+E_{\rm Pair}+E_{\rm Coul}+E_{\rm Tensor} \\ =&\int {\rm d}^{3}\mathbf{r}[k(\mathbf{r})+\varepsilon _{\rm Skyrme}(\mathbf{r} )+\varepsilon _{\rm Pair}(\mathbf{r})\\&+\varepsilon _{\rm Coul}(\mathbf{r})+\varepsilon _{\rm Tensor}(\mathbf{r})], \end{aligned}

      (5)

      where k, \varepsilon _{\rm Skyrme} , \varepsilon _{\rm Pair} , \varepsilon _{\rm Coul} , and \varepsilon _{\rm Tensor} are the corresponding energy densities. Their expressions can be found in Ref. [86].

      In the case of spherical symmetry, single-particle wave functions have the good quantum numbers (nljmq), and all the solutions inside an (nljq)-block are degenerate. Furthermore, the radial part of the wave functions can be chosen to be real. Thus, the wave function is

      \varphi _{i}(E,\mathbf{r}\sigma )=\frac{u_{i}(nlj,r)}{r}Y_{ml}^{(l)}(\bar{r})\langle lm_{l}\frac{1}{2}\sigma |jm\rangle ,\;i=1,2,

      (6)

      u_{1} and u_{2} are the radial wave functions.

      The particle and pairing densities can be written using the radial functions

      \rho (r)=\frac{1}{4\pi r^{2}}\mathop \sum \limits_{nlj} (2j+1)u_{2}^{2}(nlj,r),

      (7)

      \widetilde{\rho }(r)=-\frac{1}{4\pi r^{2}}\mathop \sum \limits_{nlj} (2j+1)u_{1}(nlj,r)u_{2}(nlj,r).

      (8)

      For the normal and abnormal kinetic densities, we have

      \begin{aligned}[b] \tau (r)=&\mathop \sum \limits_{nlj}\frac{2j+1}{4\pi r^{2}}\left[ \left( u_{2}^{{\prime }}(nlj,r)-\frac{u_{2}(nlj,r)}{r}\right) ^{2}\right.\\&\left.+\frac{l(l+1)}{ r^{2}}u_{2}^{2}(nlj,r)\right] , \end{aligned}

      (9)

      \begin{aligned}[b] \widetilde{\tau }(r)=&-\mathop \sum \limits_{nlj}\frac{2j+1}{4\pi r^{2}}\left[ \left( u_{1}^{{\prime }}(nlj,r)-\frac{u_{1}(nlj,r)}{r}\right)\right.\\&\times \left( u_{2}^{{\prime }}(nlj,r)-\frac{u_{2}(nlj,r)}{r}\right) \\&\left.+\frac{l(l+1)}{r^{2}} u_{1}(nlj,r)u_{2}(nlj,r)\right] . \end{aligned}

      (10)

      Here, u_{i} '(nlj,r) (i = 1, 2) is the first order derivative with respect to the radial coordinate r.

      The spin current vector densities are given by

      J(r)=\frac{1}{4\pi r^{3}}\mathop \sum \limits_{nlj}(2j+1)\left[ j(j+1)-l(l+1) - \frac{3}{4}\right] u_{2}^{2}(nlj,r),

      (11)

      \begin{aligned}[b] \widetilde{J}(r)=&-\frac{1}{4\pi r^{3}}\mathop \sum \limits_{nlj}(2j+1)\Bigg[ j(j+1)-l(l+1)-\frac{3}{4}\Bigg]\\& \times u_{1}(nlj,r)u_{2}(nlj,r). \end{aligned}

      (12)

      Generally, the tensor term, also known as the \mathcal{J}^{2} term, originates from both the zero-range central and tensor forces. By considering these two types of forces, \varepsilon _{\rm Tensor} can be written as

      \varepsilon _{\rm Tensor}(r)=\frac{1}{2}\alpha (J_{q}^{2}+J_{q\prime }^{2})+\beta J_{q}J_{q\prime },

      (13)

      where α and β are the like-particle and proton-neutron coupling constants, respectively. The subscript label q denotes neutrons (protons) and q^{\prime} represents protons (neutrons).

      Because the particle number cannot be preserved by the Bogolyubov transformation, two Lagrangian multipliers \lambda _{N} and \lambda _{Z} are introduced to conserve the average neutron and proton numbers. Then, the SHFB equation is obtained using the stationary condition \delta \left[E-\langle \lambda _{N}N+ \lambda _{Z}Z\rangle \right] =0 .

      In the particle-hole channel, the spin-orbit coupling field has the following form [76, 77]:

      \begin{aligned}[b] B_{s.o.}^{q} =&B_{\rho }+B_{C}+B_{T} \\=&\frac{W_{0}}{2r}\left(2\frac{{\rm d}\rho _{q}}{{\rm d}r}+\frac{{\rm d}\rho _{q^{,}}}{{\rm d}r}\right)+\left(\alpha _{C}\frac{J_{q}}{r}+\beta _{C}\frac{J_{q^{,}}}{r}\right)\\ &+\left(\alpha _{T} \frac{J_{q}}{r}+\beta _{T}\frac{J_{q^{,}}}{r}\right), \end{aligned}

      (14)

      where B_{\rho } , B_{C} , and B_{T} are from the contributions of the particle density, central exchange force, and tensor force, respectively.

      The coupling constants in Eq. (14) are \alpha =\alpha _{C}+\alpha _{T} and \beta =\beta _{C}+\beta _{T}. Therefore, Eq. (14) can be modified to

      B_{s.o.}^{q} =\frac{W_{0}}{2r}\left(2\frac{{\rm d}\rho _{q}}{{\rm d}r}+\frac{{\rm d}\rho _{q^{,}}}{{\rm d}r}\right)+\alpha\frac{J_{q}}{r}+\beta\frac{J_{q^{,}}}{r}.

      (15)

      Moreover, \alpha _{C} , \beta _{C} , \alpha _{T} , and \beta _{T} have the following forms:

      \begin{aligned}[b] \alpha _{C} =&\frac{1}{8}(t_{1}-t_{2})-\frac{1}{8}(t_{1}x_{1}-t_{2}x_{2}), \\ \beta _{C} =&-\frac{1}{8}(t_{1}x_{1}+t_{2}x_{2}), \end{aligned}

      (16)

      \begin{aligned}[b] \alpha _{T} =&\frac{5}{12}U, \\ \beta _{T} =&\frac{5}{24}(T+U). \end{aligned}

      (17)

      Expressions for the normal effective mass field M _{q} , abnormal effective mass field \widetilde{\mathit{M}}_{q} , and other potential fields (the particle-hole field U _{q} , particle-particle field \widetilde{\mathit{U}}_{q} , Coulomb field U _{C}(\mathbf{r}) , and abnormal spin-orbit field \widetilde{\mathit{B}}_{q} ) can be found from Ref. [86].

      The above fields in matrix form can be written as

      \begin{array}{*{20}{l}} \mathcal{M}=\left( \begin{array}{cc} M & \widetilde{M} \\ \widetilde{M} & -M \end{array} \right) ,\mathcal{U}=\left( \begin{array}{cc} U-\lambda & \widetilde{U} \\ \widetilde{U} & -U+\lambda \end{array} \right), \end{array}

      (18)

      \mathcal{U}_{so}=\left( \begin{array}{cc} B & \widetilde{B} \\ \widetilde{B} & -B \end{array} \right) \frac{j(j+1)-l(l+1)-\frac{3}{4}}{2r}.

      (19)

      Finally, the bulk and microscopic properties can be obtained by solving the following SHFB equation in the coordinate representation:

      \begin{aligned}[b]& \left[ -\frac{{\rm d}}{{\rm d}r}\mathcal{M}\frac{{\rm d}}{{\rm d}r}+\mathcal{U}+\mathcal{M}\frac{l(l+1) }{r^{2}}+\frac{\mathcal{M}^{{\prime }}}{r}+\mathcal{U}_{so}\right] \left( \begin{array}{c} u_{1} \\ u_{2} \end{array} \right)\\ =&E\left( \begin{array}{c} u_{1} \\ u_{2} \end{array} \right),\end{aligned}

      (20)

      where \mathcal{M}^{{\prime }} is the first order derivative with respect to the radial coordinate r.

    • B.   Investigation procedure

    • The tensor force has ever been added as a perturbation to existing Skyrme parameterization, for example, SLy5+T parameterization [70]. However, Lesinski et al. pointed out that the tensor force should not be added perturbatively to existing interactions and a complete refit of the entire parameter set is imperative [67]. Therefore, they constructed a set of 36 Skyrme parameterizations, covering a wide range of the parameter space of the isoscalar and isovector tensor term coupling constants with a fit protocol similar to that of the successful SLy parameterizations [67]. The 36 Skyrme parameterizations are known as TIJ (I(J) = 1, 2, 3..., 6) parameterizations, where the indices I and J are related to the coupling constants β and α of Eqs. (13) and (15),

      \begin{aligned}[b] \alpha =&60(J-2), \\ \beta =&60(I-2). \end{aligned}

      (21)

      The tensor effect can be shown by the evolution of nuclear structure with I or J.

      Based on the above introductions, the specific procedure of this study is as follows. First, nuclei with a 2p halo are sought out by calculating the 2p separation energies ( S_{2p} ) and charge radii (R _{ch} ) of the extremely proton-rich Ne, Mg, Si, S, Ar, and Ca isotopes using the mixed pairing force within 24 sets of the TIJ (I = 1, 2, 3, 4; J = 1, 2, 3..., 6) parameterizations. Next, the \mathcal{J}^{2} term tensor effect on the 2p radioactivity of the 2p halo nuclei is explored with the selected interactions T1J (J = 1, 2, 3..., 6) and TI1 (I = 1, 2, 3, 4). Finally, the pairing correlation effect on the 2p radioactivity of the nuclei with a 2p halo is discussed.

      To show the tensor feature of the T1J and TI1 interactions clearly, the evolutions of B _{s.o.}^{p} and Q_{2p} with the tensor parameter α or β are necessary, which are described in the next paragraphs.

      From Eq. (15), we can see that B _{s.o.}^{p} is directly relevant to the W _{0} , α, and β terms. For the T1J interactions, β is not changed. Meanwhile, \rho (\mathbf{\pmb r}) and J _{q} (r) are assumed to be constant with different J values for a given nucleus. With these conditions, the B _{s.o.}^{p} increment ( \Delta B _{s.o.}^{p} ) is only determined by the W _{0} increment ( \Delta W_{0} ) and α increment ( \Delta \alpha ),

      \begin{aligned}[b] \Delta B_{s.o}^{p} =&B_{s.o}^{p}\left( T1J\right) -B_{s.o}^{p}\left( T1X\right) ,\left( X<J, J-X=1\right) , \\ =&\frac{1}{2r}\left( W_{0}^{T1J}-W_{0}^{T1X}\right) \left( 2\frac{{\rm d}\rho _{p} }{{\rm d}r}+\frac{{\rm d}\rho _{n}}{{\rm d}r}\right)\\& +\left( \alpha ^{T1J}-\alpha ^{T1X}\right) \frac{J_{p}}{r}, \\ =&\frac{1}{2r}\Delta W_{0}\left( 2\frac{{\rm d}\rho _{p}}{{\rm d}r}+\frac{{\rm d}\rho _{n}}{{\rm d}r }\right) +\Delta \alpha \frac{J_{p}}{r}, \end{aligned}

      (22)

      where B _{s.o.}^{p}\left(T1X\right) and B _{s.o.}^{p}\left(T1J\right) represent the proton spin-orbit coupling potentials with the T1X and T1J interactions, respectively.

      Similarly, \Delta B _{s.o.}^{p} with the TI1 interactions can be expressed as

      \Delta B_{s.o}^{p}=\frac{1}{2r}\Delta W_{0}\left( 2\frac{{\rm d}\rho _{p}}{{\rm d}r}+ \frac{{\rm d}\rho _{n}}{{\rm d}r}\right) +\Delta \beta \frac{J_{n}}{r}.

      (23)

      In addition, Q_{2p} is influenced by the \mathcal{J}^{2} term because \varepsilon _{\rm Tensor} has a certain contribution to the binding energy E of a nucleus, which can be seen from Eqs. (5) and (13). For the T1J interactions, the Q_{2p} increment ( \Delta Q_{2p} ) with J is written as

      \begin{aligned}[b] \Delta Q_{2p} =&Q_{2p}^{T1J}-Q_{2p}^{T1X}, \left( X<J, J-X=1\right), \\ =&\left( E_{\rm daughter}^{T1J}-E_{\rm parent}^{T1J}\right) -\left( E_{\rm daughter}^{T1X}-E_{\rm parent}^{T1X}\right) , \\ =&\left( E_{\rm parent}^{T1X}-E_{\rm parent}^{T1J}\right) -\left( E_{\rm daughter}^{T1X}-E_{\rm daughter}^{T1J}\right), \end{aligned}

      (24)

      where E_{\rm parent}^{T1X} and E_{\rm parent}^{T1J} are the total binding energies of a parent nucleus with the T1X and T1J interactions, respectively. E_{\rm daughter}^{T1X} and E_{\rm daughter}^{T1J} refer to the total binding energies of a daughter nucleus with the T1X and T1J interactions, respectively.

      Note that the kinetic energy density k, pairing energy density \varepsilon _{\rm Pair}, and Coulomb energy density \varepsilon _{\rm Coul} are not relevant to the Skyrme parameterizations [86], and for the T1J interactions, the t_{i} and x_{i} (i = 1, 2, 3) values change slightly with increasing J except for the W_{0} and α values. In this case, the contributions to the terms in the brackets of Eq. (24) from k, \varepsilon _{\rm Pair}, and \varepsilon _{\rm Coul} and the terms that are correlated to t_{i} and x_{i} in the Skyrme energy density \varepsilon _{\rm Skyrme} almost cancel each other out. As a result, \Delta Q_{2p} is determined mainly by the spin-orbit energy density (the W_{0} term in \varepsilon _{\rm Skyrme}) and \varepsilon _{\rm Tensor}. Therefore, Eq. (24) is modified to

      \begin{aligned}[b] \Delta Q_{2p} \approx &\frac{1}{2}\left( W_{0}^{T1X}-W_{0}^{T1J}\right) \int {\rm d}^{3}\mathbf{r}\Bigg[ \left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm parent}\\&-\left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm daughter}\Bigg] \\ &+\frac{1}{2}\left( \alpha ^{T1X}-\alpha ^{T1J}\right) \int {\rm d}^{3}\mathbf{r} \Bigg[ \left( J_{p}^{2}+J_{n}^{2}\right) _{\rm parent}\\&-\left( J_{p}^{2}+J_{n}^{2}\right) _{\rm daughter}\Bigg] , \\ =&-\frac{1}{2}\Delta W_{0}\int {\rm d}^{3}\mathbf{r}\Bigg[ \left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm parent}\\&-\left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm daughter}\Bigg] \\ &-\frac{1}{2}\Delta \alpha \int {\rm d}^{3}\mathbf{r}\left[ \left( J_{p}^{2}+J_{n}^{2}\right) _{\rm parent}-\left( J_{p}^{2}+J_{n}^{2}\right) _{\rm daughter}\right]. \end{aligned}

      (25)

      Similarly, for the TI1 interactions, \Delta Q_{2p} originates from the terms \Delta W_{0} and \Delta \beta

      \begin{aligned}[b] \Delta Q_{2p} \approx &-\frac{1}{2}\Delta W_{0}\int {\rm d}^{3}\mathbf{r}\Bigg[ \left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm parent}\\&-\left( J\nabla \rho +\sum J_{p}\nabla \rho _{p}\right) _{\rm daughter}\Bigg] \\ &-\frac{1}{2}\Delta \beta \int {\rm d}^{3}\mathbf{r}\left[ \left( J_{p}^{2}+J_{n}^{2}\right) _{\rm parent}-\left( J_{p}^{2}+J_{n}^{2}\right) _{\rm daughter}\right] . \end{aligned}

      (26)
    III.   RESULTS AND DISCUSSIONS
    • For all the calculations in this study, the spherical box and mesh sizes are selected as 20 fm and 0.1 fm, respectively. The quasiparticle energies are cut off at 60 MeV. The maximum angular momentum of the quasiparticles j _{\max } is set to be \dfrac{25}{2}\hbar . All calculations converge with these conditions. In the next subsections, we discuss the following three aspects: nuclei with a 2p halo, the \mathcal{J}^{2} term tensor effect on the 2p radioactivity of 2p halo nuclei, and the pairing correlation effect on the 2p radioactivity of 2p halo nuclei.

    • A.   Nuclei with a \boldsymbol{2p} halo

    • First, the S_{2p} values of the extremely proton-rich Ne, Mg, Si, S, Ar, and Ca isotopes within the 24 sets of TIJ parameterizations (I = 1, 2, 3, 4; J = 1, 2, 3..., 6) versus A are shown in Fig. 1. Note that for the O isotopes, the calculated binding energies of their daughter nuclides (C nuclides) are not in agreement with the experimental data. Therefore, in Fig. 1, the S_{2p} values of the O isotopes are not shown. In Fig. 1, the experimental data [15, 98, 99] shows that ^{16} Ne, ^{18} Mg, and ^{30} Ar are located beyond the 2p drip-line with negative S_{2p} values, that is, the three nuclei are unbound. For the unbound nucleus ^{18} Mg, the four-proton radioactivity was observed recently from its ground state [99]. The decay of the ground state is consistent with two sequential steps of 2p decay, that is, ^{18} Mg _{\text{g.s.}} \rightarrow ^{16} Ne _{\text{g.s.}} + 2p followed by ^{16} Ne _{\text{g.s.}} \rightarrow {} ^{14}O _{\text{g.s.}} + 2p . The Q_{2p} values of the first and second decay steps are 3.44 MeV and 1.42 MeV, respectively. With the relationship Q_{2p} = -S_{2p} , it is easy to find that the experimental S_{2p} value of ^{18} Mg is –3.44 MeV, which is marked in Fig. 1 by a red star. The unbound nucleus ^{30} Ar was identified by the measurement of the trajectories of its in-flight decay products ^{28} S+p+p [15]. Via analysis of the angular correlations of the fragments, the Q_{2p} value of the ground state of ^{30} Ar is determined as 2.25 _{-0.10}^{+0.15} MeV. Hence, its ground state experimental S_{2p} value is -2.25 _{-0.15}^{+0.10} MeV, which is marked by a black star in Fig. 1. As shown in Fig. 1, ^{16} Ne and ^{18} Mg are predicted to be unbound with S_{2p} < 0 by all the interactions. Moreover, the S_{2p} values of ^{16} Ne and ^{18} Mg extracted from all the Skyrme interactions are in good agreement with the experimental values. However, the calculations with all the interactions reveal that ^{24} S and ^{32} Ca are 2p unbound, and the calculated S_{2p} values of the S and Ca isotopes within all the interactions have a certain deviation from the extant experimental data. ^{22} Si is predicted to be an unbound nucleus only within the T14, T15, T16, T25, T26, and T36 interactions. However, ^{30} Ar is also predicted to be 2p unbound by other interactions besides the above six interaction types.

      Figure 1.  (color online) S_{2p} values of the Ne, Mg, Si, S, Ar, and Ca isotopic chains versus the mass number A within the 24 sets of TIJ interactions (I = 1, 2, 3, 4; J = 1, 2, 3..., 6). The blue stars represent the experimental S_{2p} values taken from Ref. [98]. The red star is the experimental S_{2p} value of ^{18} Mg, which is taken from Ref. [99]. The black star is the experimental S_{2p} value of ^{30} Ar taken from Ref. [15].

      Relevant studies suggest that direct diproton emission may be enhanced by the 2p halo because the 2p halo would lead to a larger spectroscopic factor for a direct diproton decay than that for a sequential decay or a three-body emission [33, 100, 101]. For nuclei with a 2p halo, the charge density on the nuclear surface is extremely low; therefore, the ^{2} He cluster preforms more easily under such a condition. As a result, the probability of the direct ^{2} He emission increases. Recent studies indicate that the 2p halo plays an important role in diproton emission [56, 102105]. Therefore, searching for nuclei with a 2p halo is crucial for the study of 2p radioactivity. To search for candidates with a 2p halo, the R _{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopes computed within the 24 sets of TIJ interactions are shown in Fig. 2. As shown in Fig. 2, the R _{ch} values of ^{18} Mg and ^{20} Si are considerably larger than those of the other nuclides for all the interactions. Therefore, it is speculated that ^{18} Mg and ^{20} Si may be nuclei with a 2p halo.

      Figure 2.  (color online) R_{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopes versus A within the 24 sets of TIJ interactions (I = 1, 2, 3, 4; J = 1, 2, 3..., 6). Meanwhile, in each subfigure, R_{ch} varies with J, and I remains a constant. The blue stars represent the experimental R_{ch} values taken from Ref. [106].

      To further confirm whether the 2p halo structure exists in ^{18} Mg and ^{20} Si, the deformations of the two nuclei are evaluated using deformed SHFB theory with the T31 interaction, where ^{18} Mg and ^{20} Si are found to be nearly spherical. In addition, relevant studies suggest that the 2p halo-like structure rather than the deformation is responsible for the 2p correlation and the mechanism of 2p emission [56, 102105]. Therefore, with the microscopic single-proton energy spectra obtained within spherical SHFB theory, we can examine the 2p halo structure of ^{18} Mg and ^{20} Si. In Fig. 3, we plot the single-proton energy spectra and relative contributions of different orbits to the full density with the T31 interaction. As shown in Figs. 3(a) and (b), the 2s _{1/2} states of ^{18} Mg and ^{20} Si are not only close to the Fermi energies but also located in the region of the resonant states in the continuum. As a result, a certain number of protons occupy the resonant 2s _{1/2} state with a sizable probability owing to the pairing. Furthermore, the contribution of the 2s _{1/2} state to the full density of the large r region is dominant, which can be seen from Figs. 3(c) and (d). Because the centrifugal barrier of the 2s _{1/2} state is zero, the valence protons can tunnel out of the potential barrier and reach the large r region. Then, an extended density tail forms and the 2p halo appears.

      Figure 3.  (color online) Upper panel: Single-proton energy spectra and proton mean-field potentials of ^{18} Mg and ^{20} Si within the T31 interaction. Lower panel: Corresponding relative contribution of each orbit to the density as a function of radius. The occupation probabilities of the single-proton levels are proportional to their length. The Fermi energies are depicted by the red dotted lines.

      Owing to the 2p halos of ^{18} Mg and ^{20} Si, the 2p decay type of the two nuclei is speculated as diproton emission in view of Refs. [33, 56, 100, 101] and the speculation of Refs. [102105]. Moreover, ^{12} O, ^{16} Ne, ^{24} S, and ^{30} Ar without 2p halos are preferred to sequential or three-body radioactivity. From the experimental perspective, the reasonableness of the conclusion of Refs. [33, 56, 100, 101] and the speculation of Refs. [102105] can be tested using the following experimental facts: The 2p radioactivity of ^{12} O and ^{16} Ne was confirmed to be the sequential type by the measurements of Azhari et al. [12]. The measurement of 2p decay in ^{16} Ne suggests its 2p decay type is the sequential one [11, 13]. In ^{30} Ar [15], a transition interplay of true three-body and sequential 2p decays was detected from the measured angular correlations of the decay products. Therefore, the predicted 2p emission modes of ^{12} O, ^{16} Ne, and ^{30} Ar are consistent with those of the measurements.

    • B.   \mathcal{J}^{2} term tensor effect on the \boldsymbol{2p} radioactivity of ^{\bf 18} Mg and ^{\bf 20}Si

    • According to Eq. (21), the tensor parameters α and β are correlated with the indices J and I, respectively. Therefore, from each subfigure of Fig. 2, the impact of α on R _{ch} can be observed because J continues increasing and I remains a constant. Moreover, the \mathcal{J}^{2} term tensor effect of α on R _{ch} of ^{20} Si is the most evident. By analyzing Eq. (22), the tensor effect on R _{ch} can be understood. In addition, the spin-orbit coupling potentials, single-proton energy spectra, and density distributions of ^{20} Si within the T1J interactions are displayed in the left panel of Fig. 4.

      Figure 4.  (color online) Proton spin-orbit coupling potentials, single-proton energy spectra, and density distributions of ^{20} Si with the T1J (J = 1, 2, 3..., 6) interactions and those with the TI1 (I = 1, 2, 3, 4) interactions. The Fermi energies are depicted by the red solid squares. To observe the evolution of the single-proton energy spectra with J or I clearly, all the single-proton energy levels are of the same length.

      In Eq. (22), \Delta B _{s.o.}^{p} is determined by the \Delta W_{0} and \Delta \alpha terms. Table 1 shows the values of W _{0} , α, \Delta W_{0} , and \Delta \alpha for different T1J interactions. As shown in Table 1, \Delta W_{0} and \Delta \alpha are negative and positive, respectively. Therefore, \Delta W_{0} makes a negative contribution to \Delta B _{s.o.}^{p} in Eq. (22). However, the contribution from \Delta \alpha to \Delta B _{s.o.}^{p} is positive. Therefore, \Delta W_{0} and \Delta \alpha compete with each other. Although W _{0} increases with increasing J, the tensor effect of α is not annihilated in the increasing W _{0} . In this respect, the influence of \Delta \alpha is stronger than that of \Delta W_{0} . This effect can be observed from the spin-orbit coupling potentials of ^{20} Si plotted in Fig. 4(a).

      Physical quantitiesT11T12T13T14T15T16
      \textit{v}^{2}0.6730.7210.7590.7930.8650.881
      \textit{R}_{ch}/fm3.8373.9634.0744.2004.5014.587
      \textit{W}_{0}/(MeV fm^{5})−103.738−112.506−120.411−128.506−136.554−144.925
      α/(MeV fm^{5})−60060120180240
      \Delta W_{0}/(MeV fm^{5})−8.768−7.905−8.095−8.048−8.371
      \Delta \alpha /(MeV fm^{5})6060606060
      Physical quantitiesT11T21T31T41
      \textit{v}^{2}0.6730.7000.7070.744
      \textit{R}_{ch}/fm3.8373.8843.9243.993
      \textit{W}_{0}/(MeV fm^{5})−103.738−115.277−126.989−138.146
      β/(MeV fm^{5})−60060120
      \Delta W_{0}/(MeV fm^{5})−11.539−11.712−11.157
      \Delta \beta /(MeV fm^{5})606060

      Table 1.  v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{20} Si with the T1J (J = 1, 2, 3..., 6) interactions and those within the TI1 (I = 1, 2, 3, 4) interactions. For each T1J interaction, the W _{0} , α, \Delta W_{0} , and \Delta \alpha values are listed, and for each TI1 interaction, the W _{0} , β, \Delta W_{0} , and \Delta \beta values are given.

      As shown in Fig. 4(a), the spin-orbit potential decreases with increasing J, which weakens the splitting of the 1d orbit. For the T15 and T16 interactions, the 1d _{5/2} orbit exceeds the 2s _{1/2} orbit. These can be observed from Fig. 4(b). Furthermore, with the decrease in the 1d gap, the v ^{2} value of the 2s _{1/2} state is enhanced. The v ^{2} evolution of the 2s _{1/2} state with the T1J interactions can be observed from Table 1, which shows that the v ^{2} value increases from 0.673 with the T11 interaction to 0.881 with the T16 interaction. As a result, the increasing v ^{2} value makes the proton density distribution in a large r region extend progressively further, as shown in Fig. 4(c). Therefore, the R _{ch} values become progressively larger (See Table 1). In other words, the 2p halo size of ^{20} Si becomes enhanced with increasing α. Correspondingly, the diproton emission is enhanced with the increase in the 2p halo size.

      Similarly, for the TI1 interactions, the tensor effect of β on the 2p halo of ^{20} Si can be explained by Eq. (23) and the right panel of Fig. 4. As shown by Eq. (23), the relationship between \Delta W_{0} and \Delta \beta is also competitive. However, the influences on \Delta B _{s.o.}^{p} from the competitive \Delta W_{0} and \Delta \beta are close to each other, which can be observed clearly from Figs. 4(d-f).

      In Fig. 4(d), the peaks and outer parts of the large r region of the spin-orbit potential are almost the same for different interactions, but only the inner part (in the small r region) increases with increasing I. Hence, the 1d gap changes slightly owing to the similar peaks of the spin-orbit potentials. Nevertheless, 1d _{5/2} and 1d _{3/2} are shifted up together, which is shown in Fig. 4(e). Consequently, the v ^{2} value of the 2s _{1/2} state is enhanced with increasing I. The v ^{2} values of the 2s _{1/2} state with the T11, T21, T31, and T41 interactions are shown in Table 1. Table 1 shows that the v ^{2} value increases from 0.673 with the T11 interaction to 0.744 with the T41 interaction. Compared with the case of the T1J interactions, the increase in the v ^{2} value within the TI1 interactions is less obvious. Thus, the tail of the density distribution extends slightly, and the corresponding R _{ch} value increases from 3.837 to 3.993 fm (See Fig. 4(f) and Table 1). Therefore, the 2p halo size and diproton emission of ^{20} Si are less influenced by β than by α.

      To observe the 2p radioactivity of ^{18} Mg and ^{20} Si in future experiments, it is necessary to predict the half-lives within a reliable model. Therefore, the 2p radioactivity logarithm half-lives \log _{10}T_{1/2} ( \log _{10}T_{1/2}=\tau ) of the two nuclei are predicted within the effective liquid drop model (ELDM) [25, 107] by inputting the Q_{2p} values extracted from the 24 sets of TIJ parameterizations and the experimental Q_{2p} value. These Q_{2p} and τ values are shown in Table 2. In the framework of the ELDM, the two emitted protons are assumed to be a 2p -cluster with zero binding energy preforming near the surface of the parent nucleus. Then, the 2p -cluster penetrates the Coulomb barrier and the two protons separate quickly owing to the dominance of Coulomb repulsion. Within the mechanism of preformation and quantum tunneling, the experimental 2p radioactivity half-lives are well reproduced [25,107]. To some extent, 2p radioactivity is similar to α-decay [2628,107112]. In Table 2, the Q_{2p} and τ values of the two nuclei are divided into four groups according to the feature of the TIJ interactions. For each group, the Q_{2p} and τ values vary with J because I remains a constant. The situation is similar to those of Figs. 1 and 2. As shown in Table 2, the Q_{2p} values of ^{18} Mg and ^{20} Si are relatively large. Moreover, the Q_{2p} values in any group are impacted less by the tensor parameter J or α, even though the Q_{2p} evolution with J can be clearly observed. In each group, the Q_{2p} values become progressively larger with increasing J. Therefore, the two correlated protons inside a nucleus are easier to decay via the mechanism of quantum tunneling.

      Skyrme interactions^{18}Mg ^{20}Si Skyrme interactions^{18}Mg ^{20}Si
      Q_{2p}/MeVτ/sQ_{2p}/MeVτ/sQ_{2p}/MeVτ/sQ_{2p}/MeVτ/s
      3.44−18.21
      T113.62−18.365.19−18.77T313.71−18.425.27−18.81
      T123.69−18.415.29−18.82T323.72−18.435.32−18.84
      T133.73−18.435.37−18.86T333.81−18.495.43−18.89
      T143.78−18.475.44−18.90T343.86−18.525.49−18.92
      T153.97−18.605.53−18.94T353.90−18.555.55−18.95
      T163.98−18.605.62−18.98T363.95−18.585.58−18.96
      T213.67−18.395.23−18.79T413.78−18.475.30−18.83
      T223.71−18.425.32−18.84T423.83−18.515.38−18.87
      T233.78−18.475.41−18.88T433.87−18.535.45−18.90
      T243.79−18.485.44−18.90T443.88−18.545.49−18.92
      T253.87−18.535.54−18.94T453.92−18.575.57−18.96
      T263.96−18.595.60−18.97T463.93−18.575.58−18.96

      Table 2.  Predicted 2p radioactivity logarithm half-lives \log _{10}T_{1/2} ( \log _{10}T_{1/2}=\tau ) of ^{18} Mg and ^{20} Si within the ELDM [25, 107] by inputting the experimental Q_{2p} value and those extracted from the 24 sets of T IJ interactions. The experimental Q_{2p} value of ^{18} Mg [99] is shown in bold.

      As shown by Eq. (25), \Delta Q_{2p} arises from the competition between \Delta W_{0} and \Delta \alpha . Moreover, if the contribution from \Delta W_{0} is dominant, \Delta Q_{2p} > 0 and \Delta \tau < 0. The Q_{2p} and τ evolutions with J in Table 2 belong to this situation. Otherwise, \Delta Q_{2p} < 0 and \Delta \tau > 0. In addition, the predicted τ values of ^{18} Mg and ^{20} Si within the ELDM are approximately –18 s, although the Q_{2p} values with any group of the TIJ interactions become progressively larger with increasing J. This indicates that the τ values are not sensitive to the Q_{2p} variation when the Q_{2p} values are large, as discussed in our recent study [27, 28]. Because the predicted τ values of the two nuclei from different TIJ interactions are similar, these τ values are useful for guiding experiments on 2p radioactivity with a new generation of radioactive ion beam facilities, for example, the High Intensity heavy-ion Accelerator Facility of China [113, 114].

      Similarly, the tensor effect of β on Q_{2p} and τ can be discussed by the competition between \Delta W_{0} and \Delta \beta in Eq. (26). However, the effect from \Delta \beta is weaker than that from \Delta \alpha .

    • C.   Pairing correlation effect on the \boldsymbol{2p} radioactivity of ^{\bf 18} Mg and ^{\bf 20} Si

    • It has been shown that the 2p halo is related to the v ^{2} value of the resonant 2s _{1/2} state in the continuum. Therefore, in practical calculations, the 2p halo structure may be dependent on the pairing form. In the framework of SHFB theory, the zero range density dependent pairing interaction expressed in Eq. (4) includes the following three types of pairing interactions: volume, surface, and mixed pairing. Hence, it is interesting to investigate how the 2p halo structure is influenced by different types of pairings. In Fig. 5, we plot the S_{2p} and R_{ch} values of the O, Ne, Mg, Si, S, Ar, and Ca isotopic chains with volume, mixed, and surface pairing based on the T31 interaction. As shown in Fig. 5(a), ^{16} Ne and ^{30} Ar are predicted to be unbound by volume and mixed pairing. However, the two nuclei are predicted to be bound by surface pairing, which contradicts with the experimental fact that ^{16} Ne and ^{30} Ar are unbound nuclei with sequential 2p radioactivity. It seems that the predictive power of surface pairing is not stronger than those of volume and mixed pairing. Fig. 5(b) shows that the R_{ch} values of ^{12} O, ^{18} Mg, and ^{20} Si with surface pairing are larger than those with volume and mixed pairing. In particular, for ^{20} Si, its R_{ch} value via surface pairing is the largest. The R_{ch} value from mixed pairing is the second largest, and that from volume pairing is the smallest. This implies that the 2p halo is greatly enhanced with increased pairing.

      Figure 5.  (color online) Same as Figs. 1 and 2 but with volume, mixed, and surface pairing based on the T31 interaction.

      To understand the 2p halo enhancement caused by the increasing pairing, the proton pairing fields \widetilde{\mathit{U}}_{p} , single-proton spectra, and density distributions of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction are shown in Fig. 6. In addition, in Table 3, we show the v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{18} Mg and ^{20} Si with the three types of pairings.

      Figure 6.  (color online) Proton particle-particle fields \widetilde{\mathit{U}}_{p} , single-proton energy spectra, and density distributions of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction. All the single-proton energy levels are of the same length, and the Fermi energies are shown by red solid squares.

      NucleiPhysical quantitiesVolume pairingMixed pairingSurface pairing
      ^{18}Mg\textit{v}^{2}0.2450.3080.323
      \textit{R}_{ch}/fm3.2903.2983.410
      ^{20}Si\textit{v}^{2}0.6200.7070.486
      \textit{R}_{ch}/fm3.7583.9244.429

      Table 3.  v ^{2} values of the 2s _{1/2} state and the R _{ch} values of ^{18} Mg and ^{20} Si with volume, mixed, and surface pairing based on the T31 interaction.

      For ^{18} Mg, as shown in Fig. 6(a), the strongest, second strongest, and weakest pairing fields \widetilde{\mathit{U}}_{p} correspond to surface, mixed, and volume pairing, respectively. With the increase in \widetilde{\mathit{U}}_{p} , the splitting of the 1d orbit becomes progressively smaller (Fig. 6(b)). As a result, more and more protons occupy the 2s _{1/2} state. Then, the tail of the density distribution becomes progressively longer (Fig. 6(c)). Furthermore, progressively larger R _{ch} values are observed. This can be observed from the v ^{2} values of lines 3-4 in Table 3.

      For ^{20} Si, the situation is similar to that of ^{18} Mg, which can be observed clearly by comparing the two cases shown in Fig. 6 and Table 3. However, as shown in Table 3, the v ^{2} value of ^{20} Si with surface pairing is considerably smaller than those within volume and mixed pairing. This special phenomenon is attributed to the 2p intruder orbit. As shown in Fig. 6(e), the 2p _{1/2} and 2p _{3/2} orbits appear in the 1d gap. The filled protons in the 2p orbits make a certain contribution to the tail of the density distribution. Furthermore, the R _{ch} value of ^{20} Si within surface pairing becomes the largest.

      To observe the pairing correlation effect on Q_{2p} , the Q_{2p} values extracted from volume, mixed, and surface pairing based on the T31 interaction are listed in Table 4. Moreover, we show the corresponding τ values estimated within the ELDM [25, 107] by inputting the Q_{2p} values extracted from different pairings and the experimental Q_{2p} value [15, 98, 99]. As shown in Table 4, the Q_{2p} values of ^{18} Mg decrease with increased pairing. That is, the S_{2p} values increase with increased pairing. However, a special Q_{2p} evolution versus pairing is observed in ^{20} Si. The Q_{2p} ( S_{2p} ) value with mixed pairing is larger (smaller) than that with surface pairing. Thus, it is not difficult to discover that increased pairing correlations do not always lead to greater S_{2p} values and lower chemical potentials to increase nuclear stability. This discovery is different from that of a previous study on the change in the two-neutron separation energies caused by pairing correlations [83].

      Pairing interactions^{18}Mg^{20}Si
      Q_{2p}/MeVτ/sQ_{2p}/MeVτ/s
      3.44−18.21
      Volume3.80−18.484.97−18.66
      Mixed3.71−18.425.27−18.81
      Surface2.59−17.344.99−18.67

      Table 4.  Q_{2p} values extracted from volume, mixed, and surface pairing with the T31 interaction. The τ values are estimated within the ELDM [25, 107] by inputting the Q_{2p} values extracted from three types of pairings and the experimental Q_{2p} value. The experimental Q_{2p} value of ^{18} Mg [99] is presented in bold.

      In the above discussions, we mention that the size of the 2p halo is enhanced by surface pairing. As a result, the direct diproton emission of ^{18} Mg and ^{20} Si may be enhanced by surface pairing, as concluded by previous studies [33, 56, 100105]. However, in Table 4, the Q_{2p} values of ^{18} Mg and ^{20} Si with surface pairing are smaller than those with mixed pairing. In other words, the smaller Q_{2p} values caused by surface pairing would lead to larger τ values, which can be clearly found in Table 4. Therefore, the diproton emission of the two nuclei becomes more difficult. Nevertheless, as shown inTables 2 and 4, the τ values of ^{18} Mg and ^{20} Si are barely dependent on the Q_{2p} variations because the Q_{2p} values are relatively large. Therefore, we can determine the order of magnitude of the 2p decay half-lives of ^{18} Mg and ^{20} Si, which is approximately 10 ^{-18} s.

    IV.   CONCLUSIONS
    • In this study, the tensor and pairing correlation effects on the 2p halo structure and 2p radioactivity of ^{18} Mg and ^{20} Si are explored in the framework of spherical SHFB theory. In addition, the 2p radioactivity half-lives of the two 2p nuclei are predicted within the ELDM. The obtained results allow us to draw the following conclusions:

      (i) Owing to the competition between the \Delta W_{0} and \Delta \alpha ( \Delta \beta ) contributions to the spin-orbit coupling potential, the 2p halo size and diproton emission become enhanced with the increase in the tensor parameter α or β. Moreover, the effect from α is stronger than that from β.

      (ii) The Q_{2p} values of ^{18} Mg and ^{20} Si are relatively large, and the impact from the \mathcal{J}^{2} tensor term on the Q_{2p} values is small. However, the Q_{2p} values become progressively larger with the increase in the tensor parameter. Further analysis suggests that the Q_{2p} evolution is originally from the competition between the \Delta W_{0} contribution to the spin-orbit energy density and the \Delta \alpha ( \Delta \beta ) contribution to the tensor energy density.

      (iii) The 2p halo size and diproton emission are strongly enhanced by pairing growth because more protons occupy the 2s _{1/2} state. However, for ^{20} Si, the 2p orbit intrudes into the 1d gap owing to surface pairing. The filled protons in the 2p orbits make a certain contribution to the tail of the density distribution, leading to a 2p halo with a larger size.

      (iv) The pairing correlation has a certain influence on the Q_{2p} values of ^{18} Mg and ^{20} Si. However, the Q_{2p} values with surface pairing are smaller than those with mixed pairing. As a mechanism of quantum tunneling, the diproton emission becomes more difficult via surface pairing.

      (v) The weak dependence of the τ values on the Q_{2p} variations caused by the \mathcal{J}^{2} tensor term and pairing correlation is found. Moreover, the order of magnitude of the 2p radioactivity half-lives of the two nuclei is determined as approximately 10 ^{-18} s.

      Finally, it is necessary to note that two-neutron ( 2n ) radioactivity has been an attractive subject in recent years [115119]. Therefore, it is interesting to explore the tensor force and pairing correlation effects on the 2n halo and 2n radioactivity within the Skyrme energy density functional, which is underway.

    ACKNOWLEDGEMENTS
    • We thank professor Jianmin Dong, professor Ligang Cao, professor Shisheng Zhang, and the anonymous reviewers for helpful suggestions and comments.

Reference (119)

目录

/

DownLoad:  Full-Size Img  PowerPoint
Return
Return
